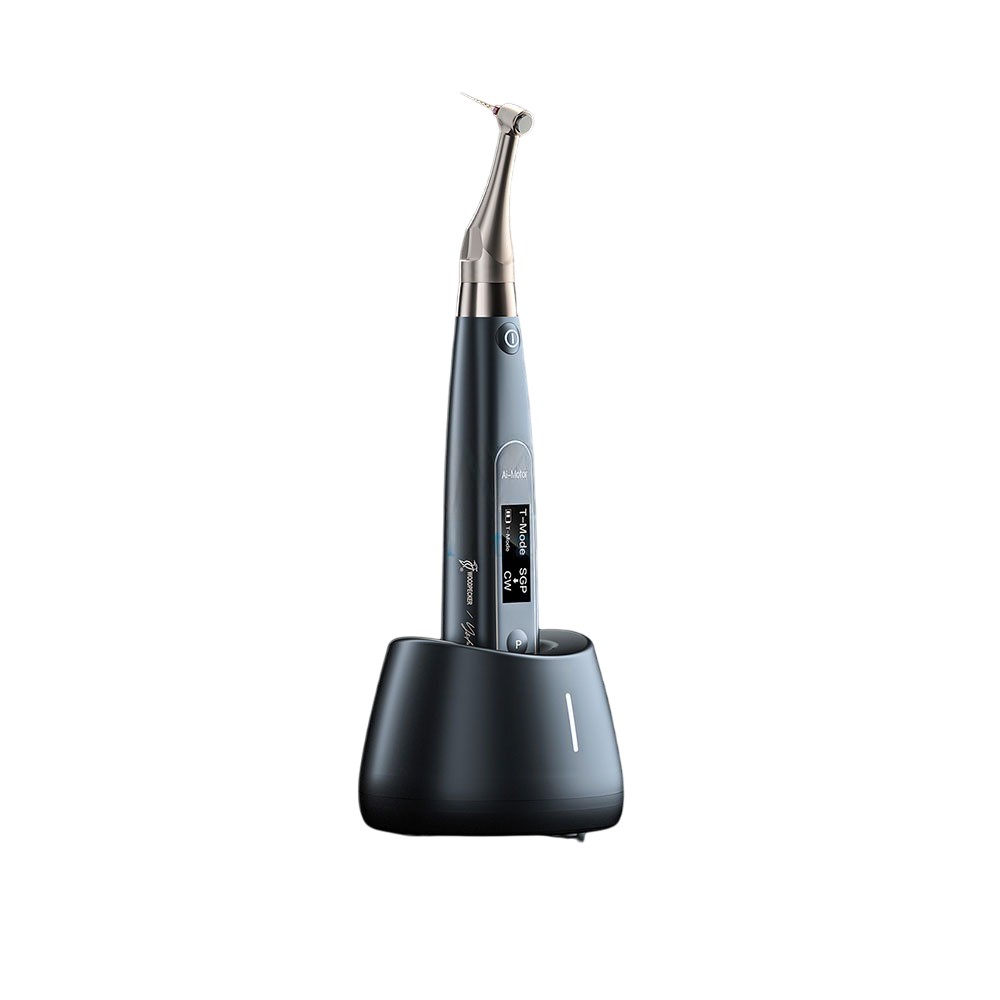

Ai-Motor Terauchi Black Edition | Endodontic motor

Endodontic Motor Woodpecker Ai-Motor Terauchi Black Edition. It incorporates the famous T-Mode designed by Dr. Yoshi Terauchi + precise and elegant ==> The motor of endodontists! Brushless motor ==> greater smoothness, performance, precision and durability. 6 working modes available*: 1.- T-Mode: it consists of a sequence of modes. – First you start with an SGP (Safe Glide Path) mode designed to pass a ledge or step that consists of a reciprocating movement with equal angle forward and backward. In this one you can set angle and rotation speed. Followed by a mode to choose between (Normal, Reverse, Reciprocating or ATR) Where you can define all the parameters of each mode. You will start by pressing the activation button to start in SGP mode and after passing the ledge or step, just press the activation button again and you will automatically switch to the second configured mode. 2.- Apex locator mode (EAL): only measurement. – You have a detail of 16 steps to the apex and besides the apex, you can set a reference point manually (flash bar). 3.- Normal Mode (CW): clockwise rotation. – You can parameterize: speed (rpm), torque (Ncm), what to do when reaching the apical point (STOP / REVERSE / OFF), whether to start rotating when the file enters the canal (ON / OFF), set a reference point (flash bar) and whether to reduce speed when approaching the apical point or not (ON / OFF). 4.- Reverse Mode (CCW): counterclockwise rotation. – Ideal for injecting Calcium hydroxide and similar. you can parameterize: speed (rpm), set a reference point (flash bar) and whether to reduce speed when approaching the apical point or not (ON / OFF). 5.- Reciprocating Mode (REC): – You can parameterize: speed (rpm), torque (Ncm), forward angle and backward angle, what to do when reaching the apical point (STOP / REVERSE / OFF), whether to start rotating when the file enters the canal (ON / OFF) and set a reference point (flash bar). 6.- Adaptive Torque Inversion Mode (ATR): the file in clockwise direction until it reaches the preset torque limit. After reaching it, it starts to rotate alternately according to the set angles. – You can parameterize: speed (rpm), torque (Ncm), forward angle and backward angle, what to do when reaching the apical point (STOP / REVERSE / OFF), whether to start rotating when the file enters the canal (ON / OFF) and set a reference point (flash bar). **F: forward angle / R: backward angle. Both adjustable every 10 degrees in an adjustment range 20º-400º. Features: Compatible with all files from the leading brands. 10 memorizable programs. 30 predefined file systems and programmed according to file manufacturer specifications (*see TABLE). In cases where they exist: each with different programming groups according to file length and taper. Adjustable working angle for easy access to different dental pieces. 360º head rotation. Clear and intuitive OLED screen. The largest integrated in a handpiece. Easy to operate. Lightweight handpiece 158 g. Large capacity battery: 2,000 mAh wireless charging. Supermini head (Ref.: 28-ME004): 8 mm diameter and 9.7 mm height ==> greater visibility. Reduction 6:1 ==> greater precision and cutting capacity Planetary gearbox ==> greater durability Autoclavable. Automatic calibration function. Adjustable torque: 0.4 Ncm to 5.0 Ncm. Adjustable speed: 100 to 2,500 rpm. Unit and handpiece warranty: 24 months Contra-angle warranty: 12 months. Supply includes: Handpiece, charging base, 2x touch probes (test tips), 2x lip hooks, measuring cable, 4x clips, transformer charger, 2x protective silicone covers, lubricating nozzle, disposable covers, other spare parts. LIST OF PREDEFINED FILE SYSTEMS: 1.- W3-Pro 11.- ProTaper 21.- Revo-S 2.- W2-ONE 12.- ProTaper Next 22.- One Shape 3.- W3-Single 13.- PathFile 23.- One Shape Apical 4.- W2-Plus 14.- RECIPROC 24.- G-Files 5.- W2-One 15.- RECIPROC Blue 25.- Endo Flar 6.- W2-Pro 16.- Mtwo 26.- iRace 7.- ENDO-Plus 17.- FlexMaster 27.- BioRace 8.- W2 18.- K3 28.- Gate 9.- Wave-One 19.- K3XF 29.- XP-endo Finisher 10.- Wave One Gold 20.- TF 30.- XP-endo Shape
