Woodpecker
SKU
EN28-ENDORADARP

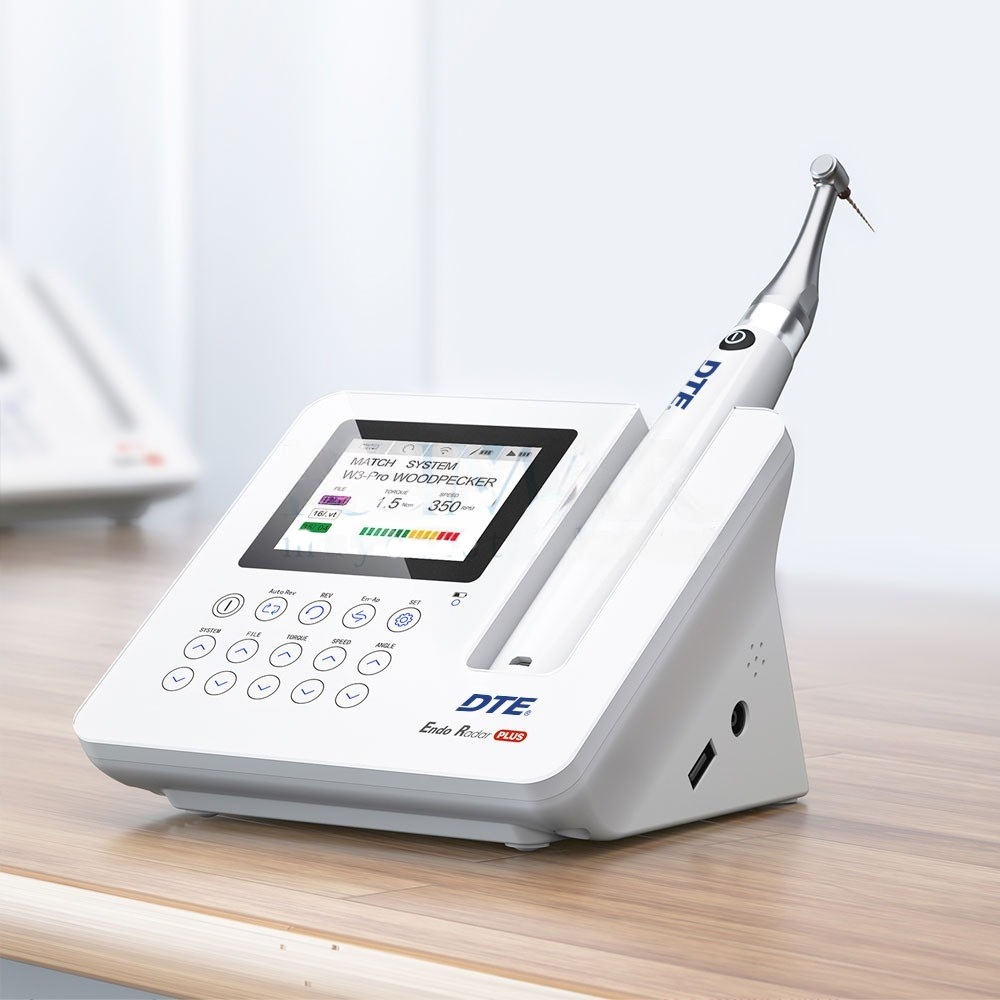

Endo Radar PLUS | Endodontic motor WOODPECKER DTE
£941.99
£784.99excl. VAT
Delivery3–5 days
Order before18:00:00
Returns14 days
Key specifications
brand_woodpecker
Woodpecker
calibration
automatic
contra-angle-warranty
12
warranty
24
Add to cart
Endo Radar Plus | Endodontic Motor Woodpecker DTE with integrated apex locator. Large luminous display, wireless base and wireless handpiece. Ideal for clinics! If applicable: each one with different programming groups according to file length and taper.
...regarding the motor: 27 different file systems, of which more than 20 are predefined and programmed according to the file manufacturer's specifications. For non-predefined files, use customizable programs.
14X fully customizable programs:
ARI Mode: Adaptive Reciprocating Intelligent or Adaptive Intelligent Reciprocation.
What is ARI? Software integrated in the Endo Radar Plus motor (Exclusive to RUMAR), which dynamically controls torsional stress during reciprocation. How does it do it? When the instrument stress in the canal increases, ARI automatically adjusts the reciprocation angles* by decreasing them. After releasing the stress, it returns to the initially set angles.
*Rotation angles fully configurable in 10º increments.
8 simple ones where you can configure: torque, speed, auto rev / auto stop / OFF, clockwise movement / counterclockwise movement.
3 reciprocating (SGP – Safety Glide Path) where you can configure: torque, speed and the reciprocating movement angles in detail (every 10º!).
2 ATR (Adaptive Torque Reverse) one clockwise movement and another counterclockwise movement.
...regarding the apex locator: Maximum precision with its 10 detail levels and the possibility of marking the desired apical warning point.
...and in the combined function: Everything from the motor and apex locator functions.
and ALSO...
3 possible actions upon reaching the apical point:
AP. STOP: stop.
AP. REV: change to counterclockwise movement. Disabled.
.SL. D.: reduce speed when approaching the apical point. Disabled.
AUTO: the file starts rotating when entering the canal. Disabled.
Features:
Compatible with all first brand files.
Adjustable working angle for easy access to different dental pieces.
360º head rotation.
Large HD LCD 2.8” touch screen, usable even with wet gloves.
VERY easy to operate.
Light handpiece: only 156gr.
High capacity battery: 2,000mAh with wireless charging.
Super mini head (Ref.: 28-ME004): 8mm diameter and 9.7mm height -> greater visibility.
6:1 reduction -> greater precision and cutting capacity.
Planetary gearbox -> greater durability.
Autoclavable.
Automatic calibration function.
Adjustable torque: 0.4 Ncm to 5.0 Ncm.
Adjustable speed: 100 to 1,200 rpm.
Unit and handpiece warranty: 24 months.
Contra-angle warranty: 12 months.
Supply includes:
Handpiece
Base
2x Touch Probes (Test tips)
2x Labial hooks
Measuring cable
USB cable (Base – Handpiece)
Tester
4x Clips
Transformer charger
2x Silicone protective covers
Lubricating nozzle
Disposable covers
Other spare parts
LIST OF PREDEFINED FILE SYSTEMS
Endo Radar Plus (ARI Mode):
1.- W3-Pro 9.- PathFile 17.- Endo Flare
2.- W3-Single 10.- K3 18.- iRace
3.- W2-Plus 11.- K3XF 19.- BioRace
4.- W2-Pro 12.- TF 20.- Gates
5.- W2 13.- Revo-S 21.- XP-endo Finisher
6.- ENDO-Plus 14.- One Shape 22.- XP-endo Shaper
7.- ProTaper 15.- One Shape Apical 23.- Program
8.- ProTaper Next 16.- G-Files
| brand_woodpecker | Woodpecker |
| calibration | automatic |
| contra-angle-warranty | 12 |
| warranty | 24 |
| adjustable-angle | 10 |
| battery-capacity | 2000 |
| sterilizable | in autoclave |
| handpiece-weight | 156 |
| reduction | 6:1 |
| adjustable-torque | 0.4 Ncm to 5.0 |
| working-modes | ARI |
| memorizable-programs | 14 |
| predefined-file-systems | 27 |
| head-diameter | 8 |
| attributes-summary | Brand: Woodpecker |
| adjustable-speed | 100 a 1.200 |
| head-rotation | 360 |
| wireless-charging | yes |
| gearbox | planetary |
| head-height | 9.7 |
