Woodpecker
SKU
EN28-ENDOSMARTP

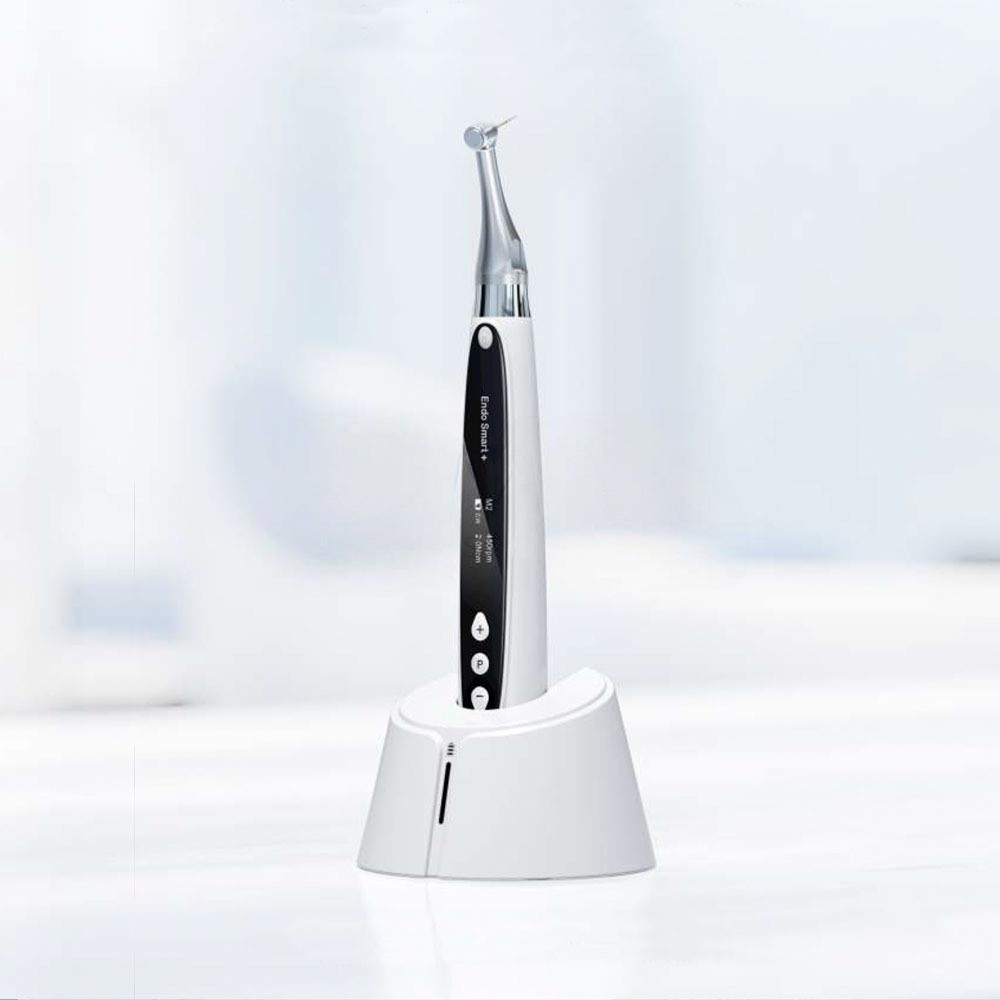

Endodontic motor + Contra angle ENDO SMART PLUS
£674.99
£562.49excl. VAT
Delivery3–5 days
Order before18:00:00
Returns14 days
Key specifications
brand_woodpecker
Woodpecker
type
brushless motor
head-height
9.7
gearbox
planetary
Add to cart
Endodontic motor + Contra angle Endo Smart Plus.
Connectable to Woodpex V and Ai-Pex apex locators for combined function. In orange, the functions are only available in combined function.
Brushless motor for greater smoothness, performance, precision and durability.
4 Modes available:
Normal Mode (CW): clockwise rotation. You can set: speed (rpm), torque (Ncm)*, what to do when reaching the apical point (STOP / REVERSE / OFF), whether it starts rotating when the file enters the canal (ON / OFF), set a reference point (flash bar) and whether to reduce speed when approaching the apical point or not (ON / OFF). *Upon reaching the preset torque = CCW + acoustic signal and after releasing torque = CW.
Reverse Mode (CCW): counterclockwise rotation. Ideal for injecting calcium hydroxide and similar. You can set: speed (rpm), set a reference point (flash bar) and whether to reduce speed when approaching the apical point or not (ON / OFF).
Reciprocal Mode (REC): You can set: speed (rpm), torque (Ncm), forward angle and backward angle**, what to do when reaching the apical point (STOP / REVERSE / OFF), whether it starts rotating when the file enters the canal (ON / OFF) and set a reference point (flash bar).
Adaptive Torque Reversal Mode (ATR): the file rotates clockwise until it reaches the preset torque limit. After reaching it, it starts rotating alternately according to the set angles. You can set: speed (rpm), torque (Ncm), forward angle and backward angle**, what to do when reaching the apical point (STOP / REVERSE / OFF), whether it starts rotating when the file enters the canal (ON / OFF) and set a reference point (flash bar).
**F: forward angle / R: backward angle. Both adjustable every 10 degrees in an adjustment range of 20º-400º.
Features:
- Compatible with all files of the leading brands.
- 10 memorizable programs.
- 30 predefined file systems and programmed according to the file manufacturer's specifications. In cases where they exist: each with different programming groups according to the length and taper of the file.
- Adjustable working angle for easy access to different dental areas.
- 360º head rotation.
- Clear and intuitive OLED screen. Easy to operate.
- Lightweight handpiece 158 g.
- High capacity battery: 2,000 mAh with wireless charging.
- Super mini head (Ref.: 28-ME004): 8 mm diameter and 9.7 mm height for greater visibility.
- 6:1 reduction for greater precision and cutting capacity.
- Planetary gearbox for greater durability.
- Autoclavable.
- Automatic calibration function.
- Adjustable torque: 0.4 Ncm to 5.0 Ncm.
- Adjustable speed: 100 to 1,200 rpm.
Warranty:
- Unit and handpiece: 24 months.
- Contra angle: 12 months.
Supply includes:
- Handpiece
- Charging base
- Mini USB cable – mini USB (for apex locators)
- 2x Silicone protective sleeves
- Charger transformer
- Lubricating nozzle
- Disposable covers
- O-ring kit
List of Predefined File Systems:
1. W3-Pro
2. W2-ONE
3. W3-Single
4. W2-Plus
5. W2-One
6. W2-Pro
7. ENDO-Plus
8. W2
9. Wave-One
10. Wave One Gold
11. ProTaper
12. ProTaper Next
13. PathFile
14. RECIPROC
15. RECIPROC Blue
16. Mtwo
17. FlexMaster
18. K3
19. K3XF
20. TF
21. Revo-S
22. One Shape
23. One Shape Apical
24. G-Files
25. Endo Flar
26. iRace
27. BioRace
28. Gate
29. XP-endo Finisher
30. XP-endo Shape
| brand_woodpecker | Woodpecker |
| type | brushless motor |
| head-height | 9.7 |
| gearbox | planetary |
| memorizable-programs | 10 |
| adjustable-angle | adjustable |
| torque | 0.4-5.0 |
| warranty | 24 |
| material | silicone |
| material | not specified |
| working-modes | Normal Mode (CW) |
| working-modes | Reverse Mode (CCW) |
| working-modes | Reciprocal Mode (REC) |
| working-modes | Adaptive Torque Inversion Mode (ATR) |
| head-diameter | 8 |
| handpiece-weight | 158 |
| angle | 20-400 |
| wireless-charging | yes |
| battery-capacity | 2000 |
| contra-angle-warranty | 12 |
| calibration | automatic |
| number-of-quality-controls | 5 |
| sterilizable | in autoclave |
| attributes-summary | Brand: Woodpecker |
| connection-type | super mini |
| speed | 100-1200 |
| reduction | 6:1 |
| head-rotation | 360º |
| compatibility | compatible with all files from leading brands |
| predefined-file-systems | 30 |
