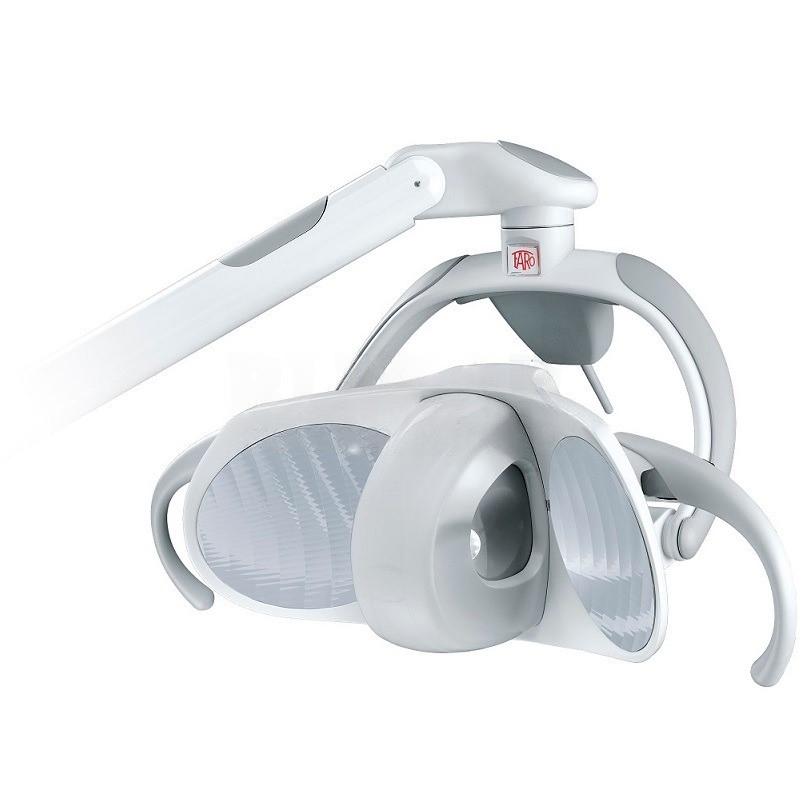

FARO MAIA LED Lamp | 320520300

LED lamp FARO MAIA High technology in full harmony with the market. Maia is the ideal choice for any dentist looking for a professional LED lamp, a reliable and durable solution, with high dental lighting performance at a competitive price. HIGH DEFINITION OF THE LIGHT BEAM The precise definition of the light beam of the MAIA dental lamp eliminates the risk of glare, protecting the eyes of patients and medical staff. Thanks to the exclusive patented optical design FARO of reflected light, direct exposure to the two LED sources used is avoided. The 258 small reflective surfaces of each parabola guarantee a completely uniform illuminated field of 170 x 95 mm. Perfect compatibility with image capture systems and diagnostic equipment, increasingly present in dental practices. Minimum size of the net shadow required by regulations: Ø 12 mm. The schialytic effect of MAIA generates an ellipse of only 9×6 mm. Progressive regulation and memorization of lighting. Electronic lighting control, activated with joystick or sensor, regulates the light from maximum to minimum power continuously, maintaining constant color temperature. Removable and autoclavable handles. TECHNOLOGY AND DESIGN LED TECHNOLOGY LED technology (LIGHT EMITTING DIODE) is the present and future of lighting: low maintenance cost and high energy efficiency of up to 50,000 hours of use. PROGRESSIVE REGULATION AND MEMORIZATION OF LIGHTING The electronic illuminance control, activated by joystick, sensor or remote through the dental unit, adjusts the light from maximum to minimum power continuously, keeping the color temperature constant. Automatic memorization of the illuminance used, after turning off the dental unit and after the rinse function. ROTATION 2-D (2 axes) 3-D (3 axes) OPTIONAL Perfect balance of the 2-D rotation system on the two axes of the head of the MAIA dental lamp. Rotation on three axes (3-D) for better positioning of the light beam. INSTALLATION AVAILABLE Thanks to the wide range of accessories, MAIA is available for applications on the UNIT, WALL, CEILING and FLOOR. CHARACTERISTICS LED FARO MAIA 320520300: Installation For Dental Chair Movement axes Rotation 2-D (2 axes) Arm 90cm Transformer Yes Switch for unit Yes Switch by sensor Yes Color RAL 9016 (Consult other colors) General specifications LED lamp FARO MAIA: Supply voltage with transformer 230 Vac +/- 10% – 50/60 Hz. Supply voltage with power supply 90-264 Vac – 47-63Hz 17-24 Vac – 50-60 Hz 22-35 Vdc Maximum power consumption 9 VA Heat 5,000K S-FX (Schialytic effect) Ellipse 9 x 6mm Intensity power of light Adjustable from 3,000LUX (*) to 50,000LUX (**) (at a distance of 700 mm) NOW IMPROVED MODEL Dimensions of light beam 170 x 95 mm (at a distance of 700 mm) Cooling system Static heatsink (no fan needed) Handles Removable and sterilizable in autoclave Warranty 12 months Medical Device conforming to Directive 93/42/EEC and subsequent modifications. Medical devices – class I Thanks to the wide range of accessories, MAIA is available for applications on the UNIT, WALL, CEILING and FLOOR. Standards applied: EN 60601-1, EN 60601-1-2, EN 60825, EN 62471; * (The technical data indicated represent typical values subject to tolerance) ** Maximum values measured on a representative sample Consult delivery time and shipping costs.
