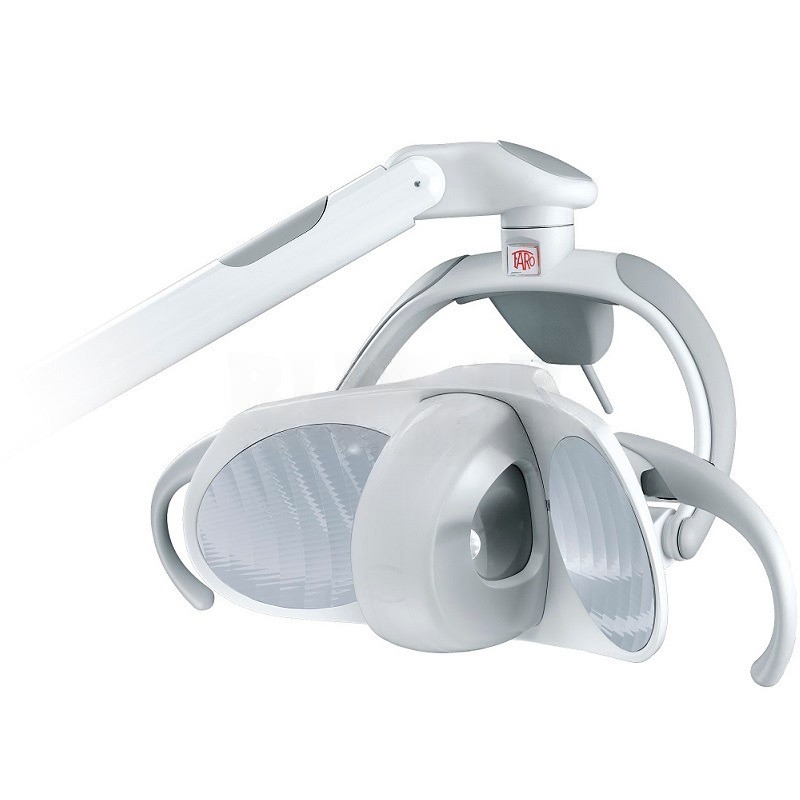

FARO MAIA LED Lamp | 322010300

FARO MAIA LED Lamp | 322010300 High technology in full harmony with the market. Maia is the ideal choice for any dentist looking for a professional LED lamp, a reliable and durable solution, with high lighting performance at a competitive price. HIGH DEFINITION OF THE LIGHT BEAM The precise definition of the light beam of the MAIA dental lamp eliminates the risk of glare, protecting the eyes of patients and medical staff. Thanks to the exclusive patented FARO optical design of reflected light, direct exposure to the two LED sources used is avoided. The 258 small reflective surfaces of each parabola guarantee a completely uniform illuminated field of 170 x 95 mm. Perfect compatibility with image capture systems and diagnostic equipment, increasingly present in dental practices. Minimum size of the net shadow required by regulations: Ø 12 mm. The MAIA scotopic effect generates an ellipse of only 9×6 mm. Progressive adjustment and memorization of lighting. Electronic lighting control, activated with joystick or sensor, regulates the light from maximum to minimum power continuously, maintaining the color temperature constant. Removable and autoclavable handles. TECHNOLOGY AND DESIGN LED TECHNOLOGY LED technology (LIGHT EMITTING DIODE) is the present and future of lighting: low maintenance cost and high energy efficiency of up to 50,000 hours of use. PROGRESSIVE ADJUSTMENT AND MEMORIZATION OF LIGHTING The electronic control of illuminance, which is activated by joystick, sensor or remote through the dental unit, adjusts the light from maximum to minimum power continuously, keeping the color temperature constant. Automatic memorization of the illuminance used, after turning off the dental unit and after the rinse function. 2-D ROTATION (2 axes) 3-D (3 axes) OPTIONAL Perfect balance of the 2-D rotation system on the two axes of the MAIA dental lamp head. Rotation on three axes (3-D) to achieve better positioning of the light beam. INSTALLATION AVAILABLE Thanks to the wide range of accessories, MAIA is available for applications in the UNIT, WALL, CEILING and FLOOR. CHARACTERISTICS LED FARO MAIA 322010300: Installation For Dental Chair Movement axes Rotation 2-D (2 axes) Arm 75cm Transformer No Interruptor for unit Yes Sensor interruptor No Color RAL 9016 (Consult other colors) General specifications of FARO MAIA LED lamp: Supply voltage with transformer 230 Vac +/- 10% – 50/60 Hz. Supply voltage with power supply 90-264 Vac – 47-63Hz 17-24 Vac – 50-60 Hz 22-35 Vdc Maximum power consumption 9 VA Heat 5.000K S-FX (Scotopic effect) Ellipse 9 x 6mm Light intensity power Adjustable from 3.000LUX (*) to 50.000LUX (**) (at a distance of 700 mm) NOW IMPROVED MODEL Light beam dimensions 170 x 95 mm (at a distance of 700 mm) Cooling system Static heat sink (does not need fan) Handles Removable and sterilizable in autoclave Warranty 12 months Medical Device compliant with Directive 93/42/EEC and subsequent amendments. Medical devices – class I Thanks to the wide range of accessories, MAIA is available for applications in the UNIT, WALL, CEILING and FLOOR. Standards applied: EN 60601-1, EN 60601-1-2, EN 60825, EN 62471; * (The technical data indicated represent typical values subject to tolerance) ** Maximum values measured on a representative sample Consult delivery time and shipping costs.
