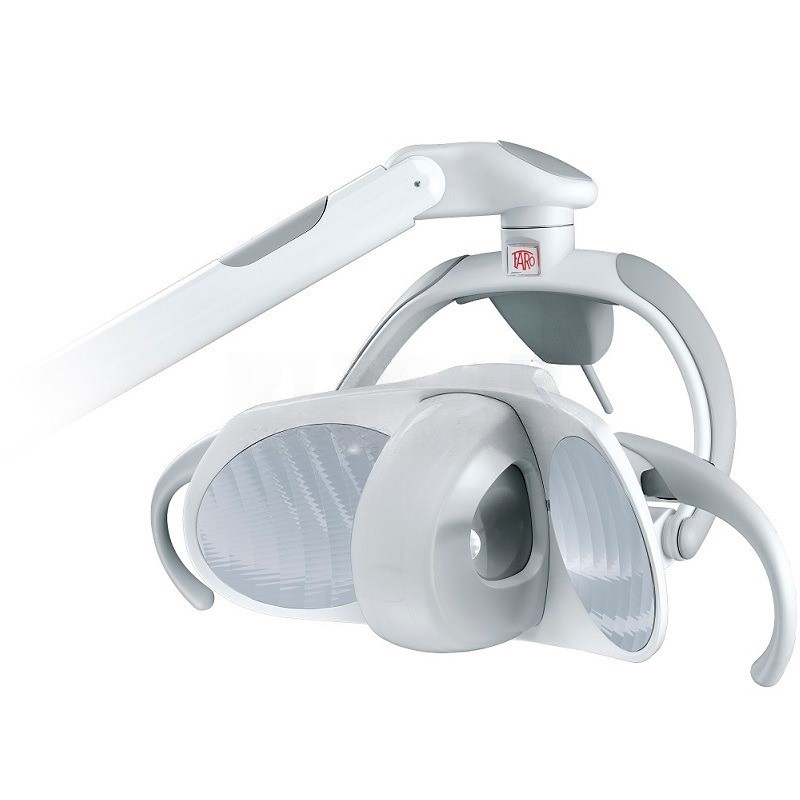

Faro Maia Led Lamp 322420300

FARO MAIA LED Lamp | 322420300 High technology fully in tune with the market. Maia is the ideal choice for any dentist looking for a professional LED lamp, a reliable and durable solution with high lighting performance at a competitive price. HIGH DEFINITION OF THE LIGHT BEAM The precise definition of the light beam of the MAIA dental lamp eliminates the risk of glare, protecting the eyes of patients and medical staff. Thanks to the exclusive patented FARO optical design of reflected light, direct exposure to the two LED sources used is avoided. The 258 small reflective surfaces of each parabola guarantee a completely uniform illuminated field of 170 x 95 mm. Perfect compatibility with image capture systems and diagnostic equipment, increasingly present in dental practices. Minimum size of the net shadow required by regulations: Ø 12 mm. The MAIA scialytic effect generates an ellipse of only 9×6 mm. Progressive adjustment and memorization of the lighting. Electronic lighting control, activated with joystick or sensor, adjusts the light from maximum to minimum power continuously, keeping the color temperature constant. Removable and autoclavable handles. TECHNOLOGY AND DESIGN LED TECHNOLOGY LED technology (LIGHT EMITTING DIODE) is the present and future of lighting: low maintenance cost and high energy efficiency of up to 50,000 hours of use. PROGRESSIVE ADJUSTMENT AND MEMORIZATION OF THE LIGHTING The electronic illuminance control, activated by joystick, sensor or remote through the dental unit, adjusts the light from maximum to minimum power continuously, keeping the color temperature constant. Automatic memorization of the illuminance used, after switching off the dental unit and after the rinse function. 2-D ROTATION (2 axes) 3-D (3 axes) OPTIONAL Perfect balance of the 2-D rotation system on the two axes of the MAIA dental lamp head. Rotation on three axes (3-D) to achieve better positioning of the light beam. AVAILABLE INSTALLATION Thanks to the wide range of accessories, MAIA is available for UNIT, WALL, CEILING and FLOOR applications. FARO MAIA LED CHARACTERISTICS 322420300: Installation For Dental Chair Movement axes 2-D rotation (2 axes) Arm 90cm Transformer Yes Switch for unit Yes Sensor switch No Color RAL 9016 (Consult other colors) General specifications FARO MAIA LED lamp: Supply voltage with transformer 230 Vac +/- 10% – 50/60 Hz. Supply voltage with power supply 90-264 Vac – 47-63Hz 17-24 Vac – 50-60 Hz 22-35 Vdc Maximum power consumption 9 VA Heat 5.000K S-FX (Scialytic effect) Ellipse 9 x 6mm Light intensity power Adjustable from 3.000LUX (*) to 50.000LUX (**) (at a distance of 700 mm) NOW IMPROVED MODEL Light beam dimensions 170 x 95 mm (at a distance of 700 mm) Cooling system Static heat sink (no fan needed) Handles Removable and sterilizable in autoclave Warranty 12 months Medical Device conforming to Directive 93/42/EEC and subsequent modifications. Medical devices – class I Thanks to the wide range of accessories, MAIA is available for UNIT, WALL, CEILING and FLOOR applications. Applicable standards: EN 60601-1, EN 60601-1-2, EN 60825, EN 62471; * (The indicated technical data represent typical values subject to tolerance) ** Maximum values measured on a representative sample Consult delivery time and shipping costs.
