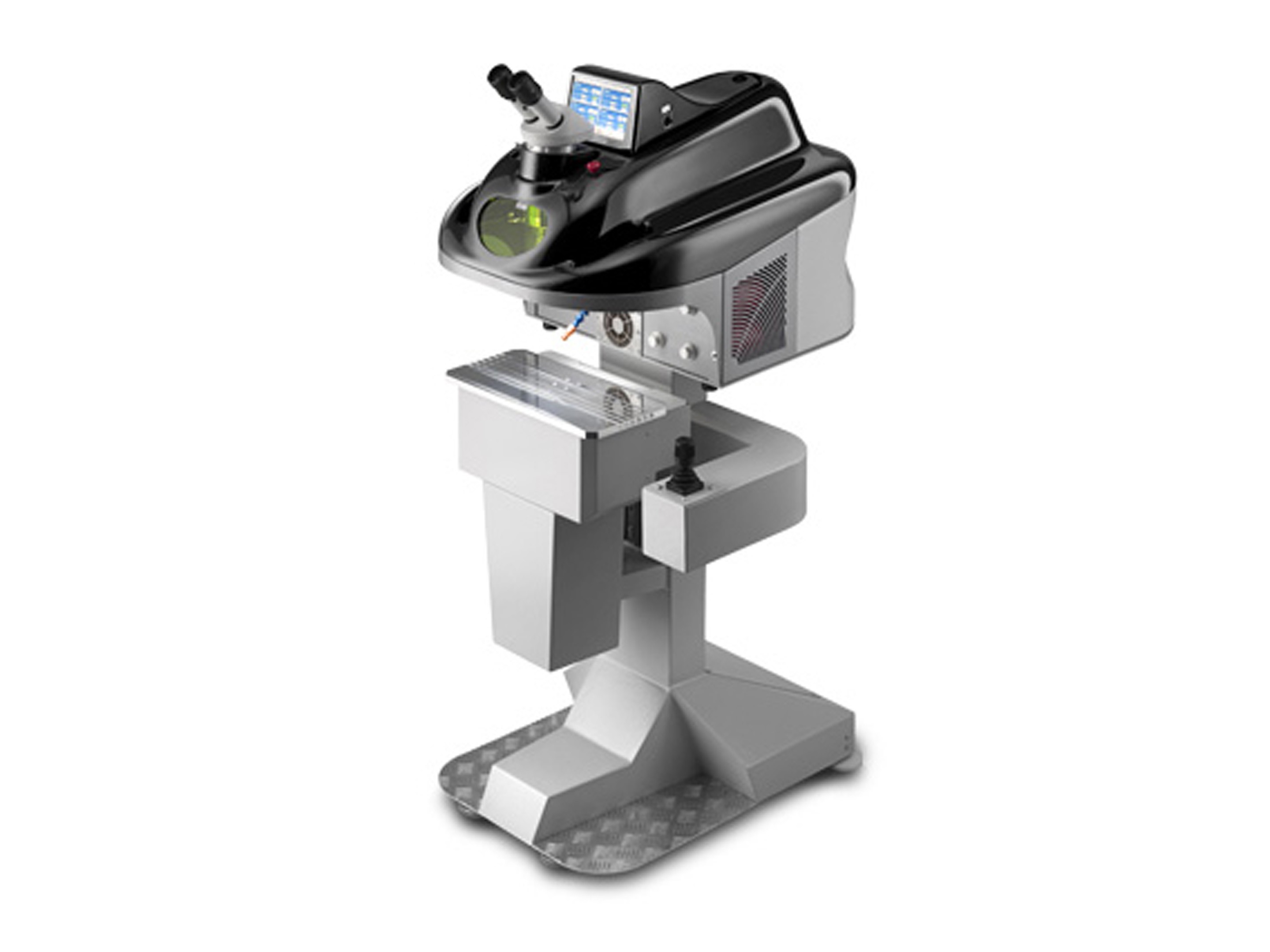

LASER WELDING MACHINE MOD. AWL AUTOMATIC 140 JOULES ELETTRO

It is equipped with a motorized three-axis table controlled by a joystick with all functions on board, including the trigger button and the adjustment of the rotary axis, supplied as an option for circular welding. It is equipped with a completely open welding cabin, suitable for housing even bulky parts. Energies 140 J, it offers great flexibility in use for small and medium factories with continuous production. Features: - Laser wavelength: Nd: YAG 1.064 nm - Power in KW: 7 Kw - Energy: 140 J - Pulse time: 0.1 / 20 ms - Pulse frequency: 0.5 / 30 Hz - Spot diameter: 0.2 to 2 mm - Amps: 10 A - Power supply: 230 V AC, 50/60 Hz. Single-phase. - Dimensions: 67 x 135 x 87 cm - Weight: 95 Kg - 7" color touch screen - One hundred programmable memories - Leica 10x stereomicroscope - LCD display with high brightness - Internal joystick in the welding chamber - Motorization of the chamber, X-Y-Z axis - Footrest - LED lighting - Long-lasting lamp - Integrated camera - Wi-Fi connection - Web interface of the data logger - RJ45 Ethernet port included - 36 months warranty - Optional: 0.1 spot - Optional: Motorized rotary clamp
