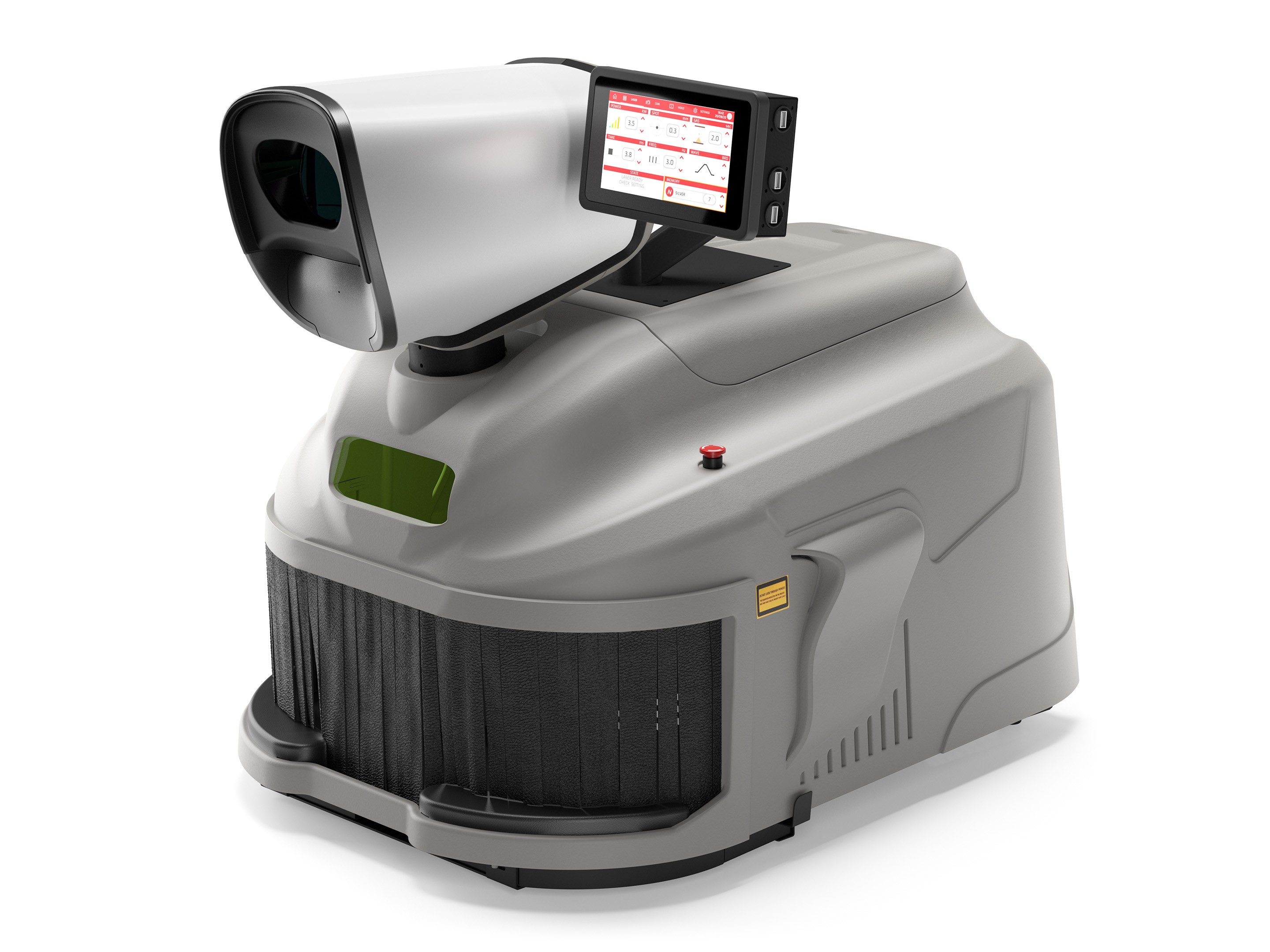

LASER WELDING MACHINE MOD. MEGA 5.0 3D 4.0 245 JOULES ELETT

LASER WELDING MACHINE MOD. MEGA 5.0 3D 245 JOULES ELETTROLASER The new latest-generation design incorporates a reinforced armrest that increases comfort and usability, along with the 7? screen and the joystick inside the working chamber. With the latest advanced updates, the laser allows low consumable use and increased connectivity, as well as improving the laser beam in terms of repeatability. Compact in its dimensions, it is suitable for small laboratories and also small/medium-sized companies that need to optimize their space. Its advantage over the Master 5.0 is that it comes equipped with a much more comfortable 3D vision system, it gives us better spatial vision and allows us to work much longer without tiring the eyes. Features: ? Laser wavelength: Nd: YAG 1.064 nm ? Power in KW: 9 Kw ? Energy: 245 J ? Pulse time: 0.1 / 25 ms ? Pulse frequency: 0.5 / 30 Hz ? Firing point diameter: 0.2 to 2 mm ? Amperes: 10 A ? Power supply: 230 V AC, 50/60 Hz. Single-phase. ? Dimensions: 50 x 50 x 85 cm ? Weight: 35 Kg ? 7" color touch screen ? One hundred programmable memories ? Leica 10x stereomicroscope ? LCD display with high brightness ? Internal joystick in the welding chamber ? LED illumination ? Long-lasting lamp ? Integrated video camera ? Wi-Fi connection ? Data logger web interface ? Ethernet RJ45 port included ? 36 months warranty ? Optional: Firing point at 0.1
