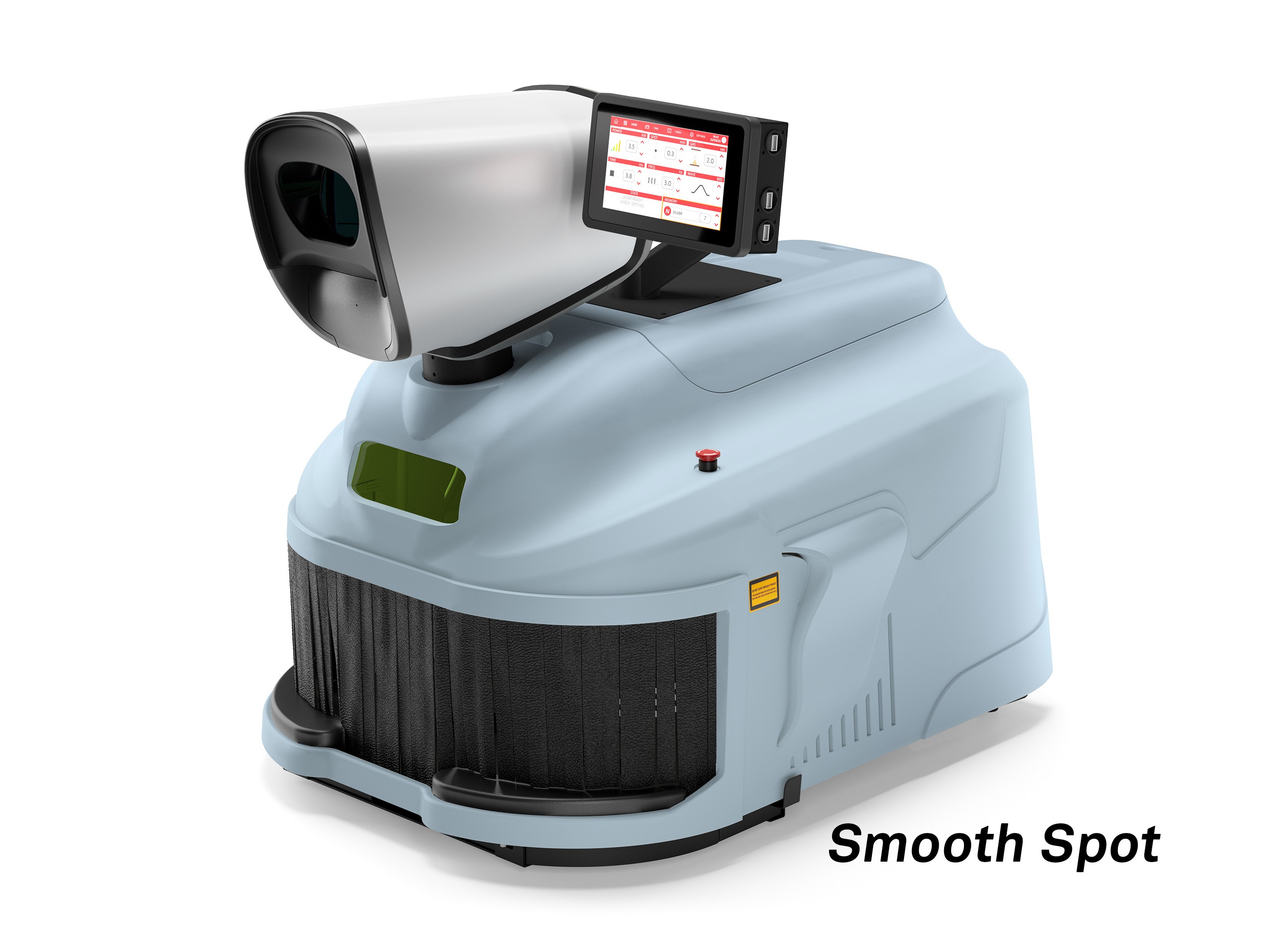

LASER WELDING MACHINE MOD. MEGA 6.0 3D 255 JOULES ELETTROLA

LASER WELDING MACHINE MOD. MEGA 6.0 255 JOULES ELETTROLASER The new latest-generation design incorporates a reinforced armrest that increases comfort and usability, along with the 7" screen and the joystick inside the working chamber. With the latest advanced updates, the laser allows low use of consumables and increased connectivity, as well as improving the laser beam in terms of repeatability. Compact in its dimensions, it is suitable for small laboratories and also small/medium-sized companies that need to optimize their space. Its advantage over the Master 6.0 is that it comes equipped with a 3D vision system that is much more comfortable, gives us better spatial vision and allows us to work much longer without tiring the eyes. Features: ? Laser wavelength: Nd: YAG 1.064 nm ? Power in KW: 10 Kw ? Energy: 255 J ? Pulse time: 0.1 / 25 ms ? Pulse frequency: 0.5 / 30 Hz ? Spot diameter: 0.2 to 2 mm ? Amps: 10 A ? Power supply: 230 V AC, 50/60 Hz. Single-phase. ? Dimensions: 50 x 50 x 85 cm ? Weight: 35 Kg ? 7" color touch screen ? One hundred programmable memories ? SMOOTH SPOT technology ? Leica 10x stereomicroscope ? LCD display with high brightness ? Internal joystick in the welding chamber ? LED lighting ? Long-life lamp ? Integrated video camera ? Wi-Fi connection ? Data logger web interface ? RJ45 Ethernet port included ? 36 months warranty ? Optional: Spot at 0.1
