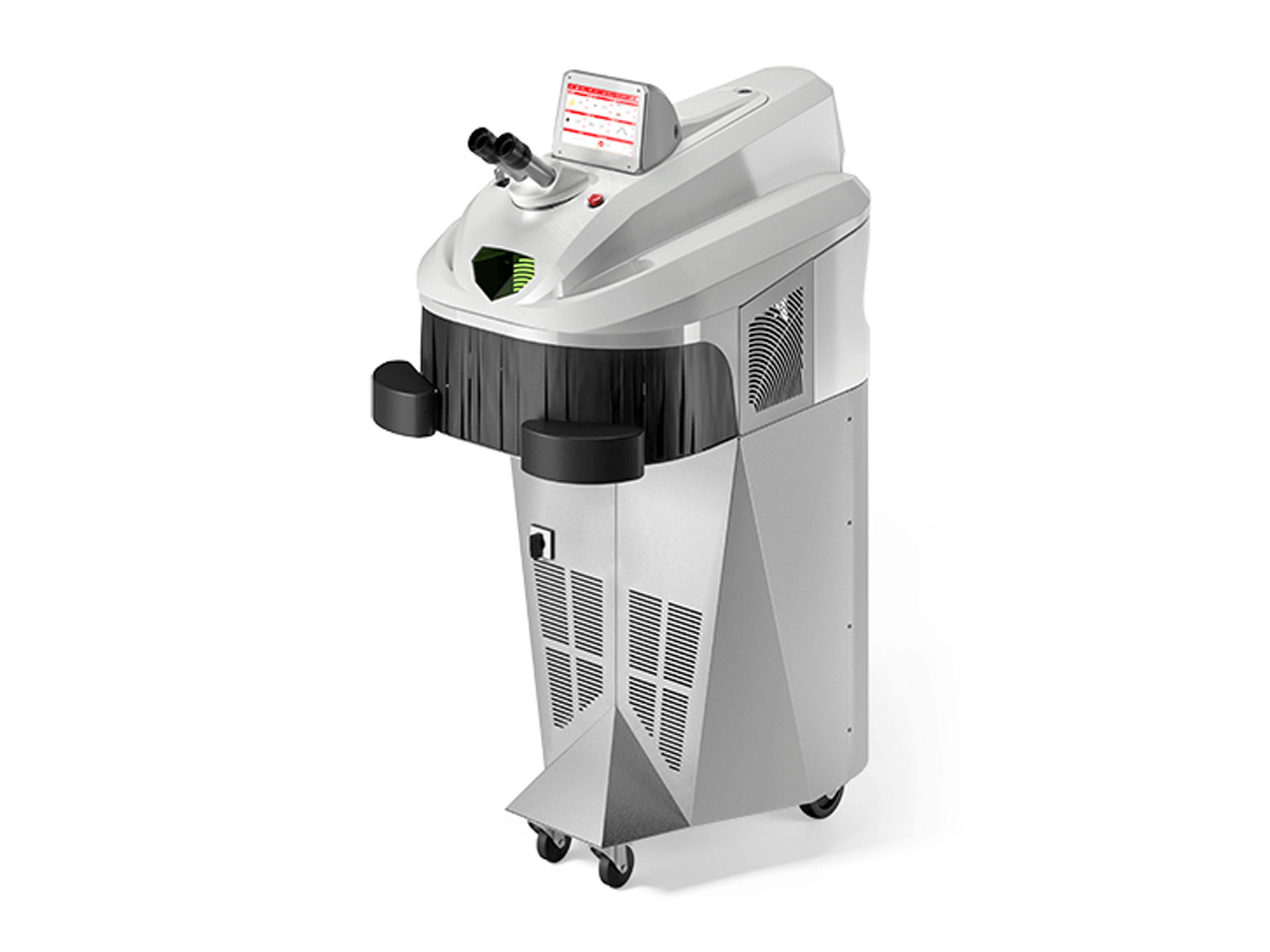

LASER WELDING MACHINE MOD. MEGA HIT 300 JOULES ELETTROLASER

LASER WELDING MACHINE MOD. MEGA HIT 300 JOULES ELETTROLASER The double in-line laser, together with an improved capacitor, allows delivering greater power than the standard and guarantees greater ease in welding reflective materials such as silver. The new cooling system, entirely designed by Elettrolaser, integrated into the pedestal, guarantees intensive use of the machine. It is also equipped with a large welding cabin and a steel structure that offers greater flexibility in the industrial field thanks to the lower opening of the welding cabin, this detail is very useful for bulky and large pieces. Features: - Laser wavelength: 2Nd: YAG 1.064 nm - Power in KW: 15 Kw - Energy: 300 J - Pulse time: 0.1 / 20 ms - Pulse frequency: 0.5 / 40 Hz - Spot diameter: 0.2 to 2 mm - Amps: 16 A - Power supply: 230 V AC, 50/60 Hz. Single-phase. - Dimensions: 55 x 127 x 92 cm - Weight: 85 kg - 7" color touch screen - One hundred programmable memories - Leica 10x stereomicroscope - LCD display with high luminosity - Internal joystick in the welding chamber - LED lighting - Long-lasting lamp - Integrated video camera - Wi-Fi connection - Data logger web interface - RJ45 Ethernet port included - 36 months warranty - Optional: Spot diameter at 0.1
