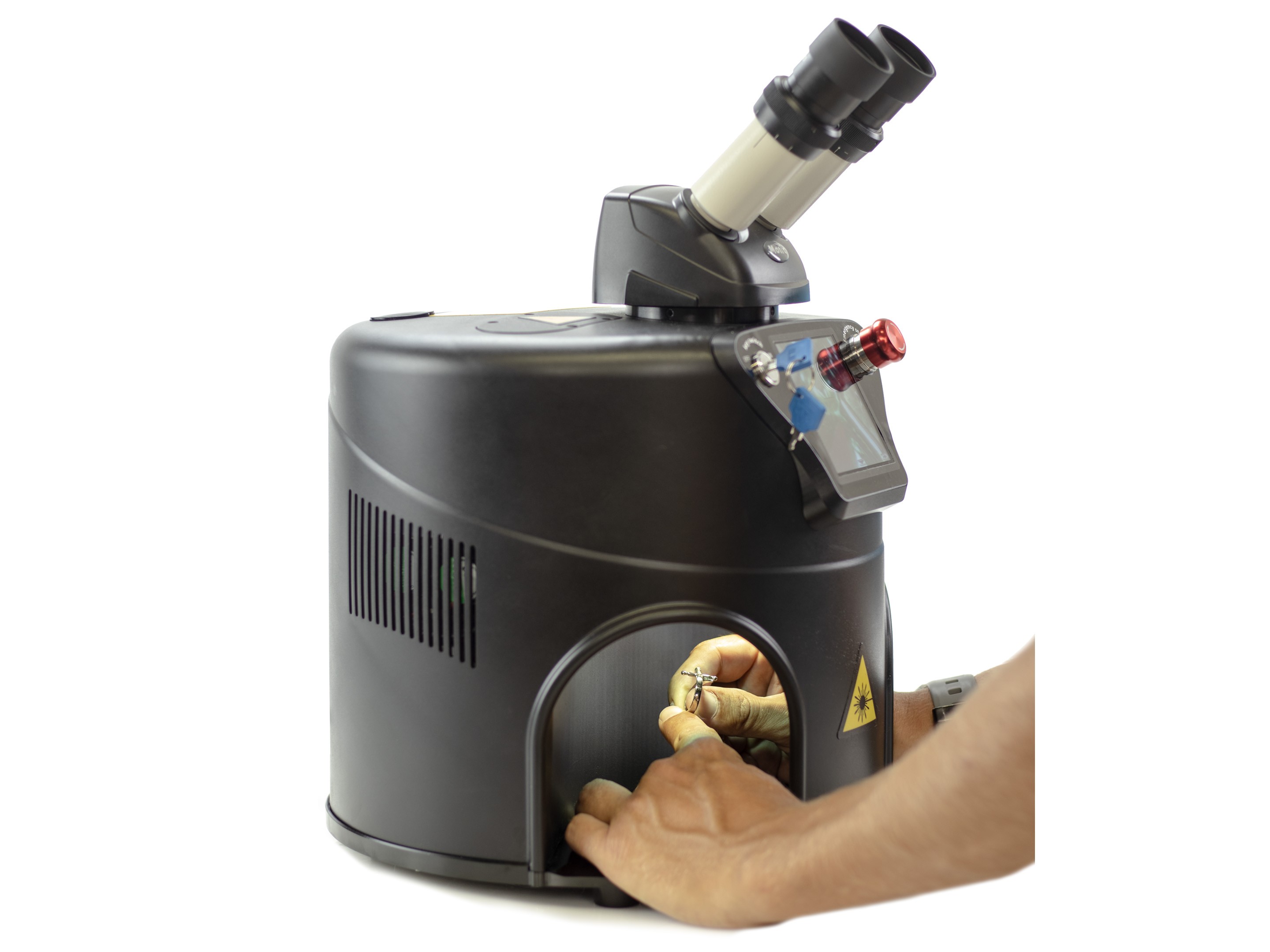

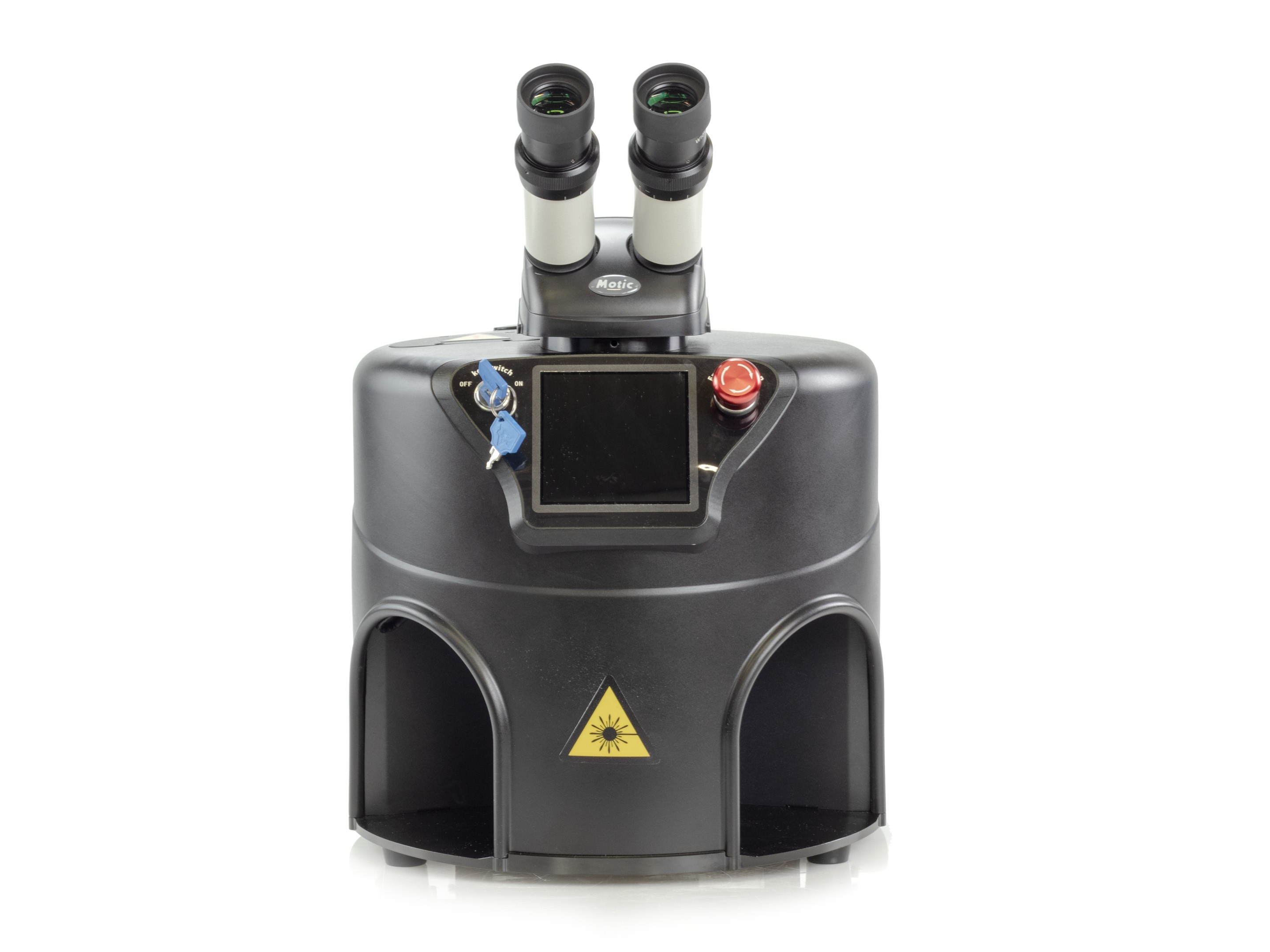

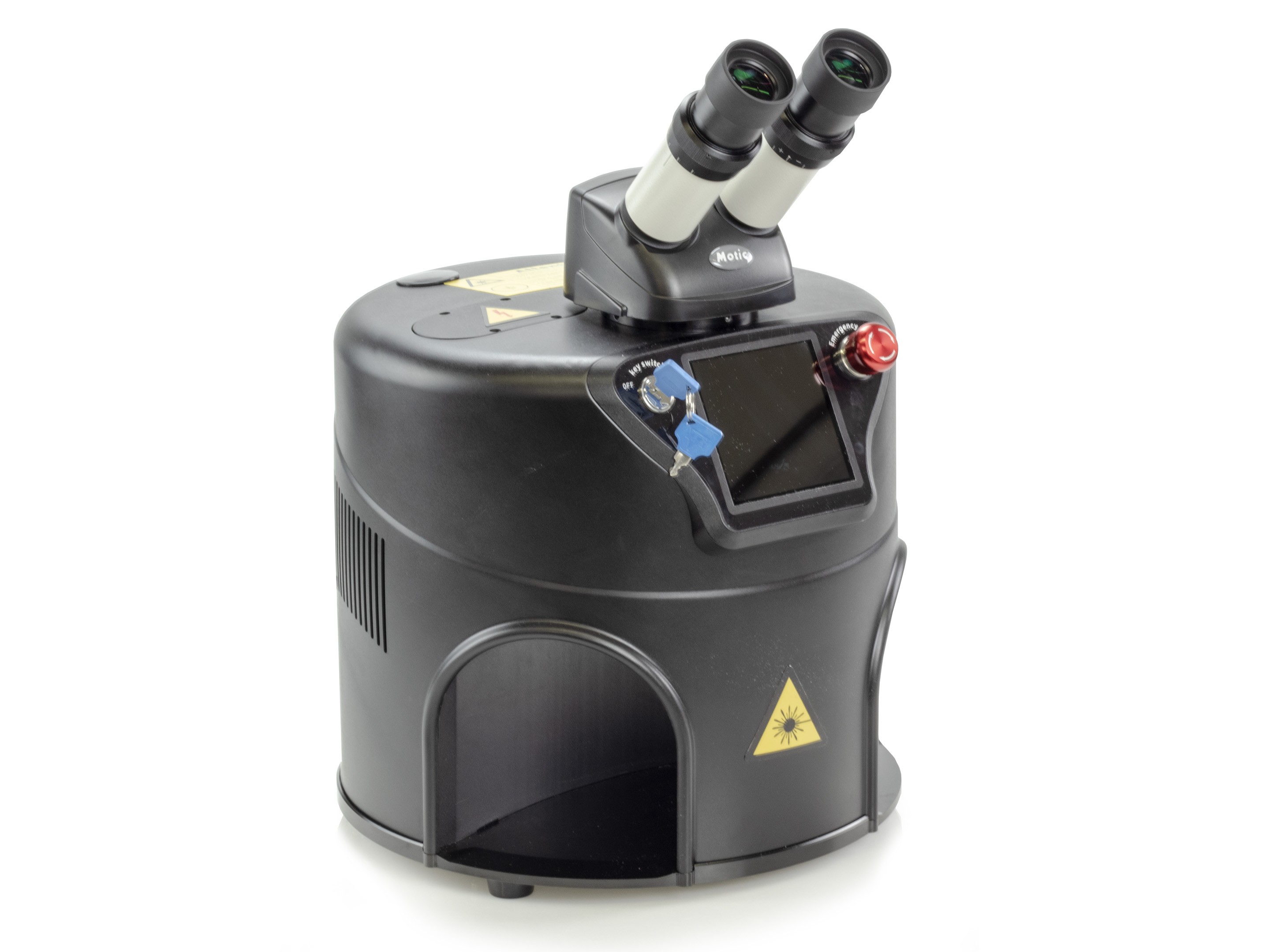

LASER WELDING MACHINE MOD. TECHNOFLUX MICRO WELDER POWER

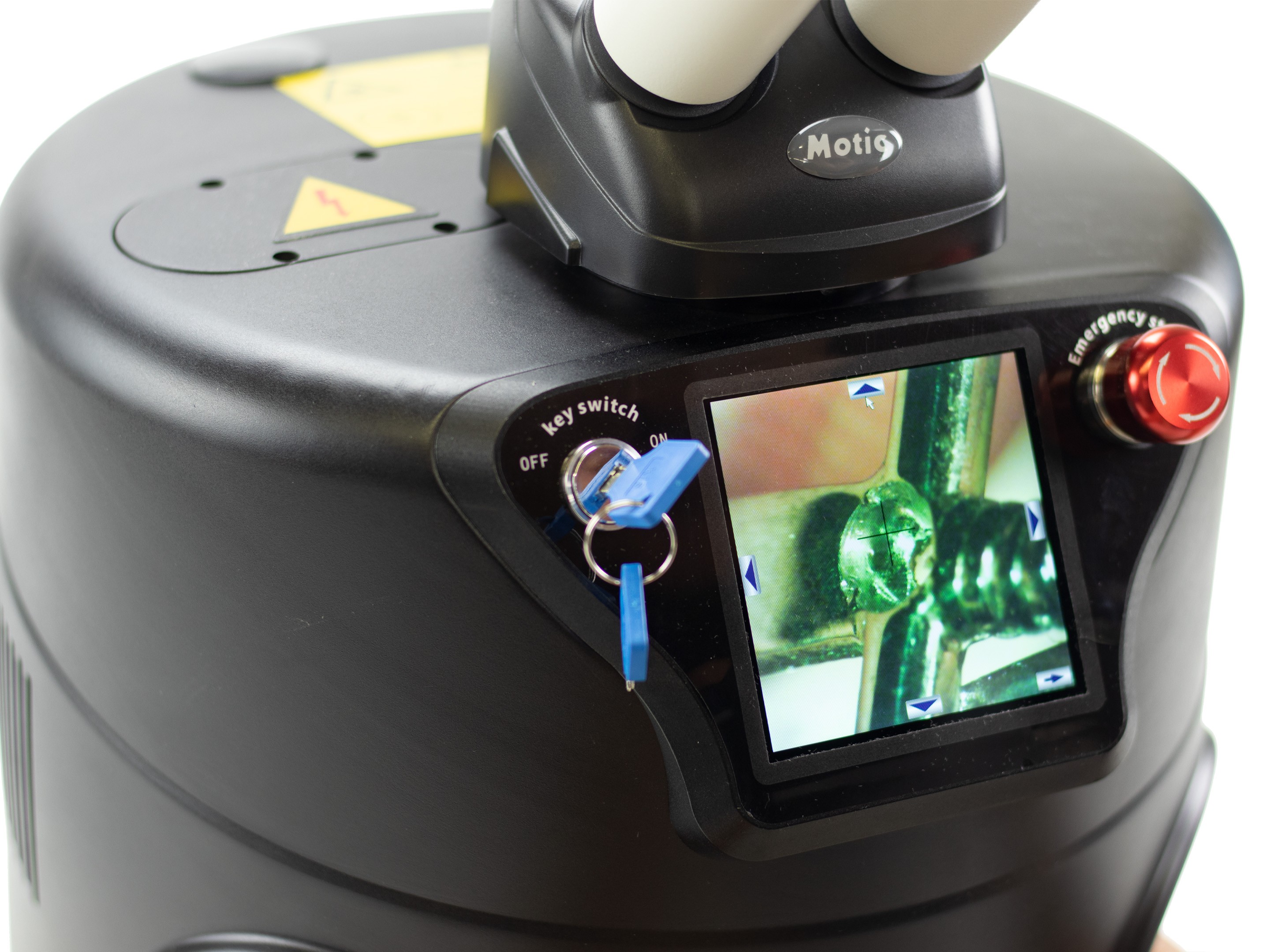

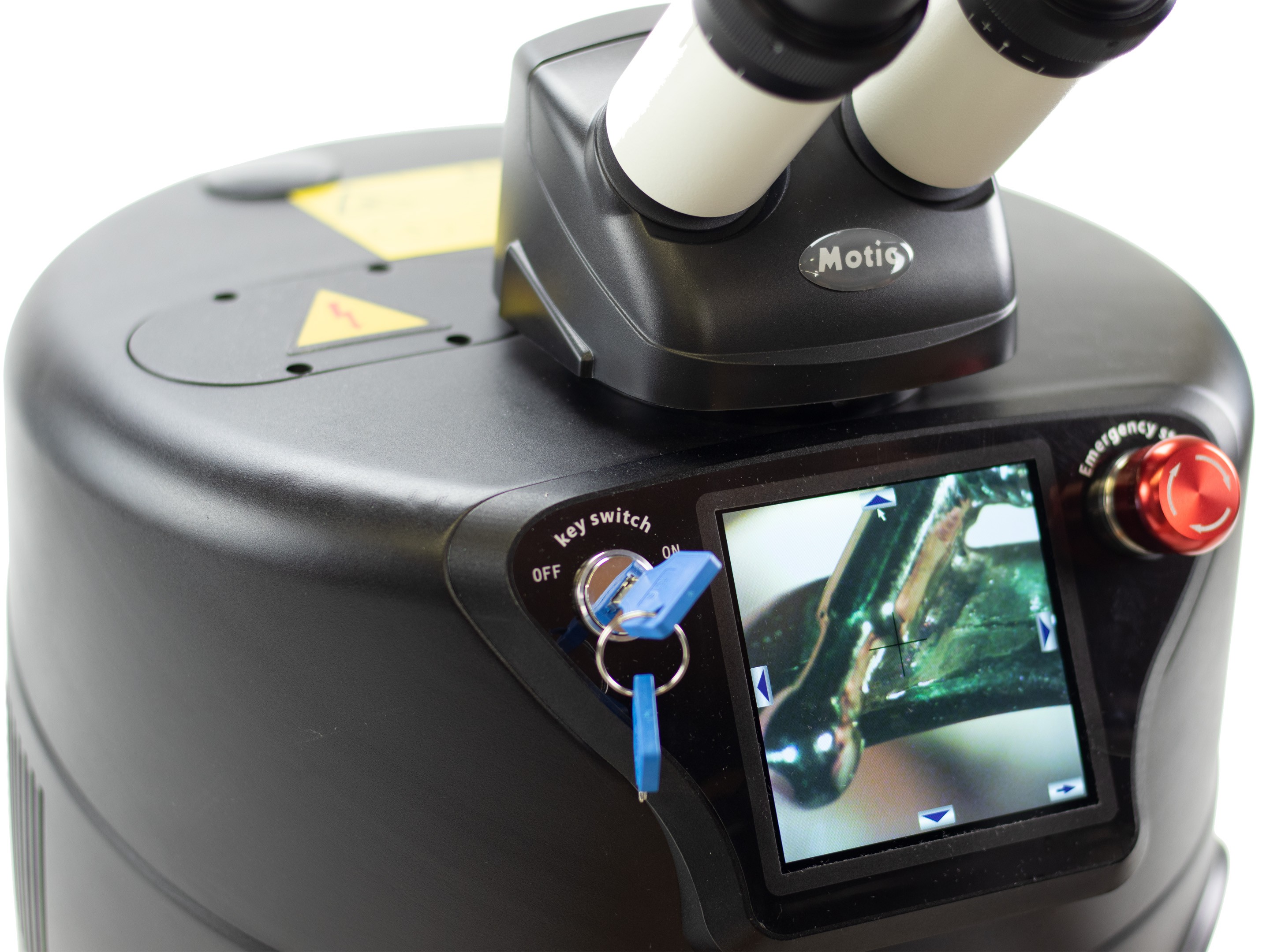

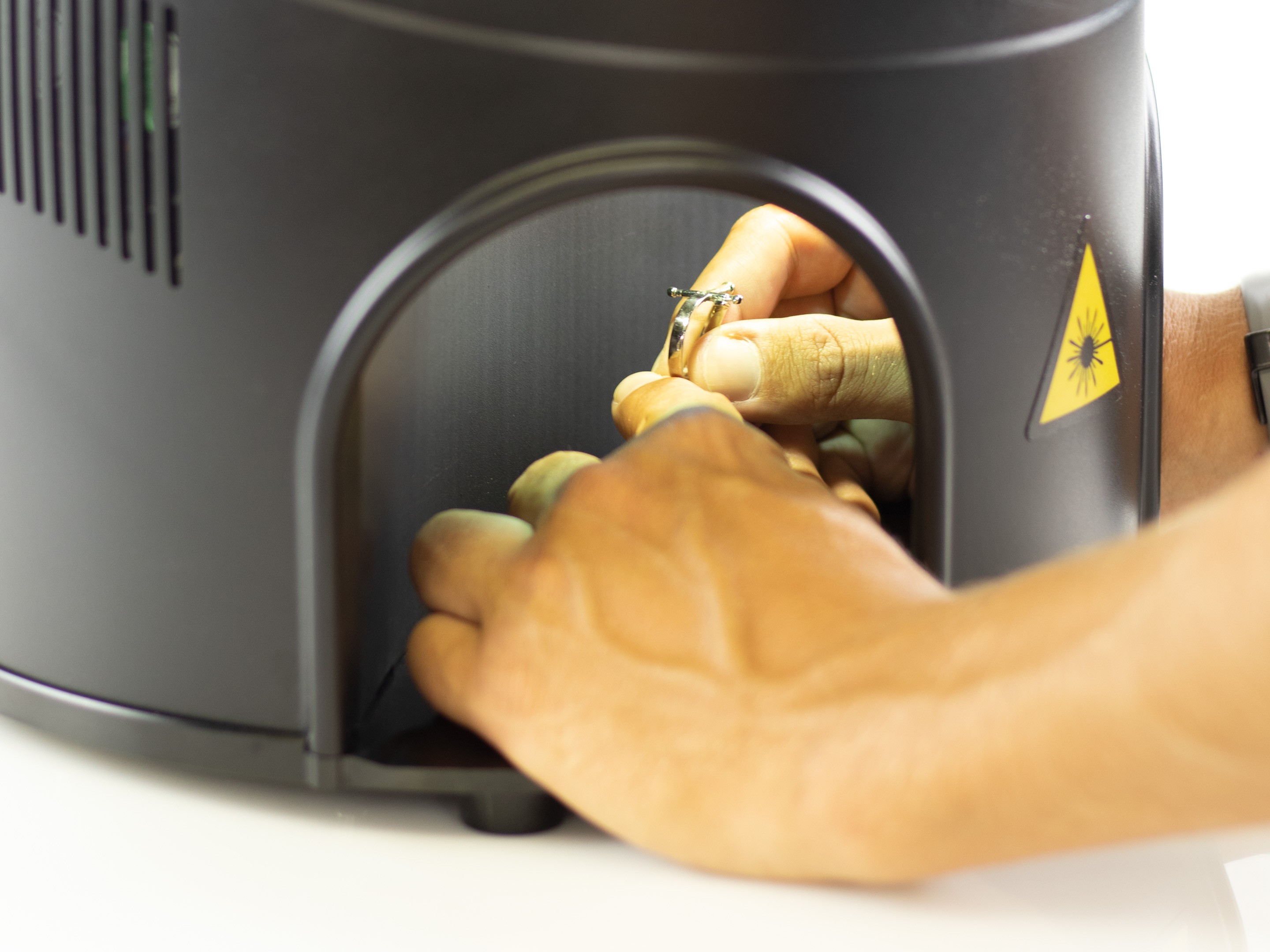

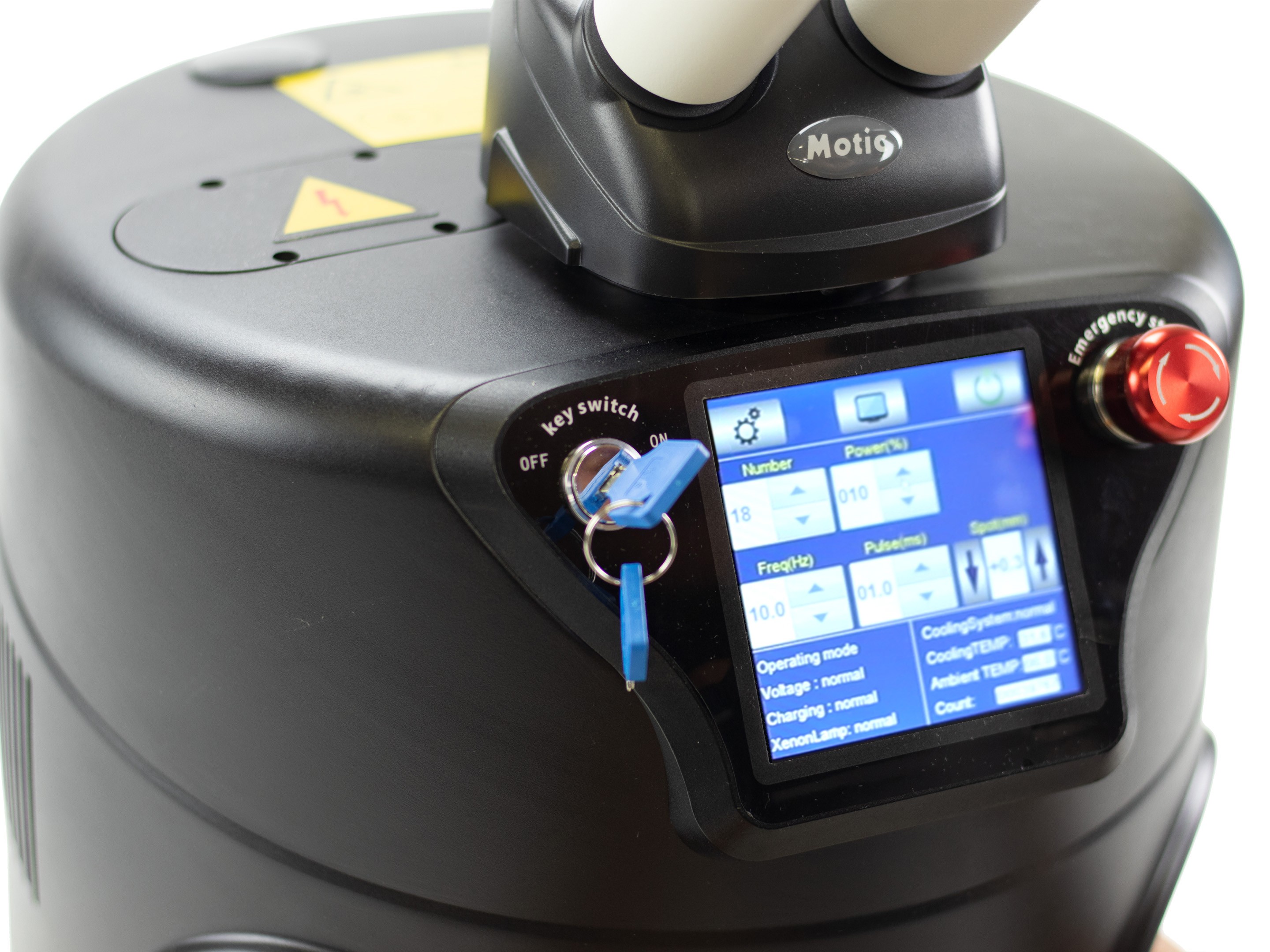

LASER WELDING MACHINE MOD. TECHNOFLUX MICRO WELDER POWER The new Micro Welder Power welding machine, characterized by spectacular power, its small dimensions, light weight, integrated camera x10 magnification, a large touch screen that allows us to visualize the welding work to be performed with great precision and its personalized settings in each type of work, becomes an essential machine for all laboratories and clinics that want to perform high precision welding work on all types of metals. It is possible to weld: gold, platinum, cobalt chromium, steel, palladium, silver with and without wire solder. The new design, with the reinforced body, ensures greater comfort for the operator, thanks to its ergonomic working position, low noise level and the possibility of removable specimen holders on the sides. The latest generation 7" touch screen allows you to configure the power and frequency parameters, adjust the laser shot size (from 0.15 to 2 mm) and the ability to save up to 20 memories. It has an ignition key for the worker as well as a front emergency stop button. Product parameters Laser type: YAG of 1064 nm Spot diameter: 0.15-2.0 mm Pulse width: 0.1-10ms Frequency: 1.0~10.0Hz Continuously Adjustable Maximum power: 3.5 KW Cooling system: Air Source Pump: Xenon lamp Orientation and positioning microscope + HD digital CCD camera system Screen Multicolor HD digital 10X CCD touch screen Operating language English Electrical connection values AC220V ± 5%, 50HZ / 60HZ Machine dimension Ø295 mm x H282 mm Net weight of the machine 13.5 KG Operating ambient temperature ?45 ? Humidity: 90% without condensation Wooden package dimensions 40x45x48CM Application and uses in dental: · Suitable for steels, chromium and cobalt and other metals in the dental sector. · Welding of elements with the use of filler materials without additional cleaning. * 1 year warranty
