SKU
EN80-5C1302000

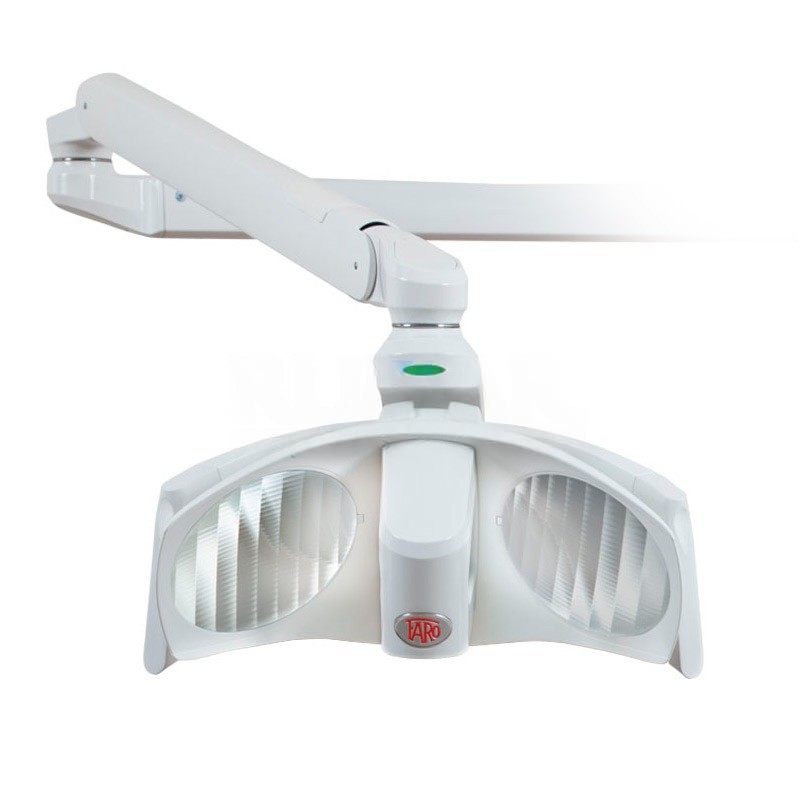

LED Ceiling Lamp FARO EVA TUNABLE WHITE, 82cm Arm, With Sensor | 80-5C1302000
£2872.99
£2394.16excl. VAT
Delivery3–5 days
Order before18:00:00
Returns14 days
Key specifications
cooling-system
Static heat sink (no fan needed)
color
RAL 9016
arm-length
82
lux-visual-indicator
Yes
Add to cart
Ceiling LED Lamp Faro Eva Tunable White | Arm 82cm | With sensor
The dental lamp Eva Tunable White has a new technology that offers the medical team and the patient the highest level in terms of visual comfort and lighting experience. In addition, it creates perfect light with an excellent visual balance between color and depth and allows distinguishing tiny details of tissues, contours and surfaces at a specific elliptical point in the oral cavity.
Luminous button
The luminous button on the lamp head provides immediate visual information about the lighting level and color temperature.
Reflected light
The exclusive patented optical design of reflected light guarantees a uniform and well-defined light focus that does not dazzle patients.
Color temperature
Possibility of selecting the ideal color temperature for the dental procedure in progress: 5700 K, 5000 K, 4000 K and 2700 K. Composave function.
Tunable White technology
5,700K – Recommended for shade taking in prosthetic and conservative dentistry.
5,000K – Recommended for orthodontics, conservative dentistry and pediatric dentistry.
4,000K – Recommended for surgery.
2,700K – Recommended Composave function to prevent composite hardening.
The exclusive patented optical design of reflected light guarantees a uniform and well-defined light focus that does not dazzle patients.
Specific features
Installation: For Dental Chair.
Movement axes: 3-D rotation (3 axes).
Arm: 82cm.
Color temperature (k): 2,700 (Composave), 4,000, 5,000 and 5,700.
Visual color temperature indicator: Yes.
Lux (at a distance of 700 mm): 60,000 for 4,000k, 5,000k and 5,700k and 11,000 for 2,700K (Composave) (now improved model).
Transformer: No.
Switch for unit: Yes.
Switch by sensor: Yes.
Color: RAL 9016.
Also available with Theiatech (rear arm with integrated LED light)
Theia Tech is the LED lighting system that can be integrated into the rear arm of the dental lamp Eva. The system improves visibility of the preoperative area, balancing the illuminance of the operative areas of the dental office and reducing visual fatigue of the doctor, the assistant and the patient. The Theia Tech system is the response to regulatory research requests for the care of well-being and comfort of the operative environment.
General features*:
Alternating current power supply: 24Vac 50/60Hz – 32Vdc.
Direct current power supply: 32Vdc 14VA (28VA)*.
Light focus dimensions: 190 x 100 mm (at a distance of 700 mm).
LUX visual indicator: Yes.
Cooling system: Static heat sink (no fan needed).
Handles: Removable, sterilizable in autoclave and soft to the touch for an easy and safe grip.
Warranty: 12 months.
Medical Device conforming to Directive 93/42/EEC and subsequent modifications – Medical devices – Class I – Applicable standards: EN 60601-1, EN 60601-1-2, EN 60825, EN 62471. (The indicated technical data represent typical values subject to tolerance)
* Values referring to the Theiatech® version.
Thanks to the wide range of accessories, Eva is available for applications in the unit, on wall and ceiling. Contact us for more info, delivery time and shipping costs.
| cooling-system | Static heat sink (no fan needed) |
| color | RAL 9016 |
| arm-length | 82 |
| lux-visual-indicator | Yes |
| color-temperature-visual-indicator | Yes |
| standards | Directive 93/42/EEC, EN 60601-1, EN 60601-1-2, EN 60825, EN 62471 |
| installation | For Dental Chair |
| short-description | Led Ceiling Lamp Faro Tunable White, 82cm Arm, With Sensor | 80-5C1302000 Up to 60,000 lux. RAL 9016 |
| power-supply | 24Vac 50/60Hz – 32Vdc |
| warranty | 12 months |
| attributes-summary | Weight: 8,000 kg | Arm length: 82 cm | Version: Ceiling | Color: White | Sensor / Switch: Sensor | Transformer: No | Switch for unit: Tunable White | Third axis movement: Yes | Composave mode: Yes |
| lux | 60,000 for 4,000k, 5,000k and 5,700k and 11,000 for 2,700K (Composave) |
| color-temperature | 5700 K, 5000 K, 4000 K, 2700 K, 2.700 (Composave), 4.000, 5.000, 5.700 |
| transformer | No |
| dc-power-supply | 32Vdc 14VA (28VA)* |
| handles | Removable, autoclavable and soft to the touch |
| light-focus-dimensions | 190 x 100 mm |
| axes-of-movement | 3-D rotation (3 axes) |
No reviews yet.
