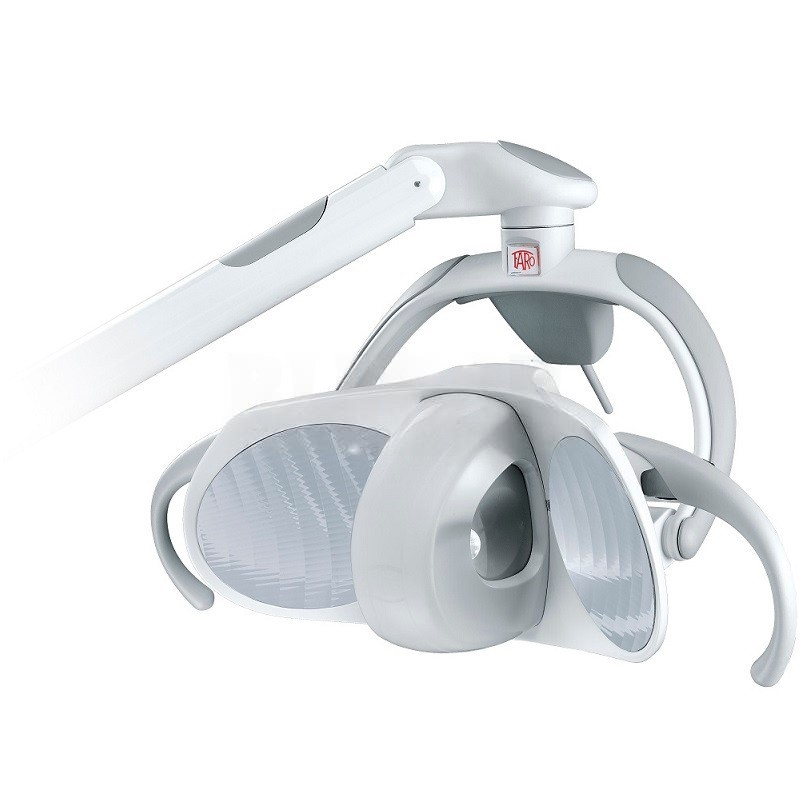

LED lamp FARO MAIA | 320110300

MAIA FARO LED Lamp | 320110300 High technology in perfect harmony with the market. Maia is the ideal choice for any dentist looking for a professional LED lamp, a reliable and durable solution, with high lighting performance at a competitive price. HIGH DEFINITION OF THE LIGHT BEAM The precise definition of the light beam of the MAIA dental lamp eliminates the risk of glare, protecting the eyes of patients and the medical team. Thanks to the exclusive patented FARO optical design of reflected light, direct exposure to the two LED sources used is avoided. The 258 small reflective surfaces of each parabola guarantee a completely uniform illuminated field of 170 x 95 mm. Perfect compatibility with image capture systems and diagnostic equipment, increasingly present in dental practices. Minimum size of the net shadow required by regulations: Ø 12 mm. The MAIA scotopic effect generates an ellipse of only 9x6 mm. Progressive regulation and memorization of lighting. Electronic lighting control, activated with joystick or sensor, adjusts the light from maximum to minimum power continuously, keeping the color temperature constant. Removable and autoclavable handles. TECHNOLOGY AND DESIGN LED TECHNOLOGY LED technology (LIGHT EMITTING DIODE) is the present and future of lighting: low maintenance cost and high energy efficiency of up to 50,000 hours of use. PROGRESSIVE REGULATION AND MEMORIZATION OF LIGHTING The electronic control of illuminance, activated by joystick, sensor or remotely through the dental unit, adjusts the light from maximum to minimum power continuously, keeping the color temperature constant. Automatic memorization of the illuminance used, after turning off the dental unit and after the rinse function. ROTATION 2-D (2 axes) 3-D (3 axes) OPTIONAL Perfect balance of the 2-D rotation system on the two axes of the MAIA dental lamp head. Rotation on three axes (3-D) to achieve better positioning of the light beam. INSTALLATION AVAILABLE Thanks to the wide range of accessories, MAIA is available for UNIT, WALL, CEILING and FLOOR applications. FEATURES LED FARO MAIA 320110300: Installation For Dental Chair Movement axes Rotation 2-D (2 axes) Arm 75cm Transformer No Switch for unit Yes Sensor switch Yes Color RAL 9016 (Consult other colors) General specifications FARO MAIA LED lamp: Supply voltage with transformer 230 Vac +/- 10% – 50/60 Hz. Supply voltage with power supply 90-264 Vac – 47-63Hz 17-24 Vac – 50-60 Hz 22-35 Vdc Maximum power consumption 9 VA Heat 5,000K S-FX (Scotopic effect) Ellipse 9 x 6mm Light intensity power Adjustable from 3,000LUX (*) to 50,000LUX (**) (at a distance of 700 mm) NOW IMPROVED MODEL Light beam dimensions 170 x 95 mm (at a distance of 700 mm) Cooling system Static heat sink (no fan needed) Handles Removable and sterilizable in autoclave Warranty 12 months Medical Device conforming to Directive 93/42/EEC and subsequent modifications. Medical devices – class I Thanks to the wide range of accessories, MAIA is available for UNIT, WALL, CEILING and FLOOR applications. Standards applied: EN 60601-1, EN 60601-1-2, EN 60825, EN 62471; * (The technical data indicated represent typical values subject to tolerance) ** Maximum values measured on a representative sample Consult delivery time and shipping costs.
