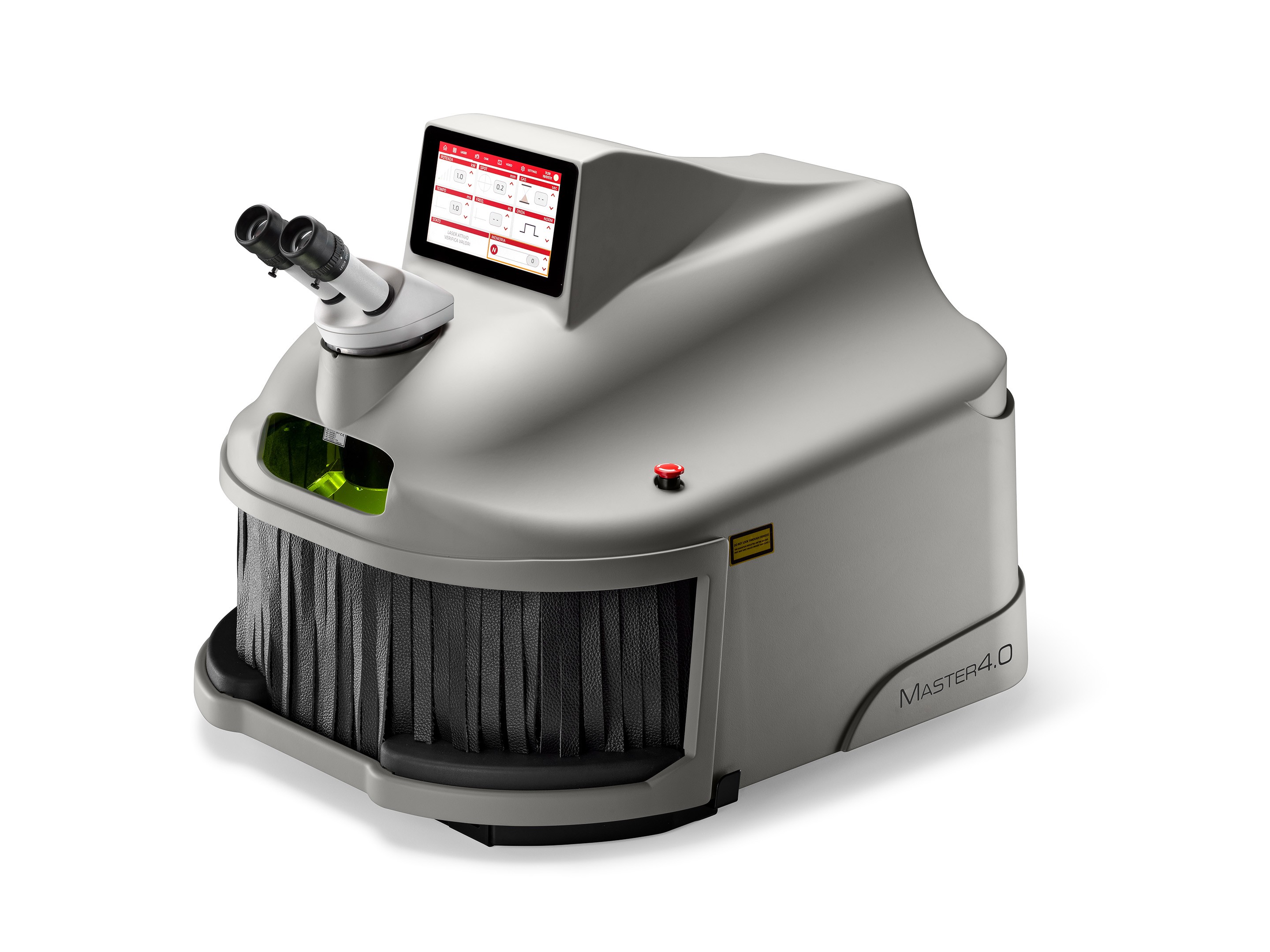

MAQUINA DE SOLDAR POR LASER MOD. MASTER 4.0 225 J ELETTROLASER

LASER WELDING MACHINE MOD. MASTER 4.0 225 JOULES ELETTROLASER The new latest generation design incorporates a reinforced armrest that increases comfort and usability, along with the 7-inch screen and the joystick inside the working chamber. With the latest advanced updates, the laser allows low consumable usage and increased connectivity, in addition to improving the laser beam in terms of repeatability. Compact in its dimensions, it is suitable for small laboratories and also small/medium enterprises that need to optimize their space. Features: ? Laser wavelength: Nd: YAG 1.064 nm ? Power in KW: 6.5 Kw ? Energy: 225 J ? Pulse time: 0.1 / 25 ms ? Pulse frequency: 0.5 / 30 Hz ? Spot size: 0.2 to 2 mm ? Amps: 10 A ? Power supply: 230 V AC, 50/60 Hz. Single-phase. ? Dimensions: 55 x 52 x 71.5 cm ? Weight: 30 Kg ? 7-inch color touch screen ? One hundred programmable memories ? Leica 10x stereomicroscope ? LCD display with high brightness ? Internal joystick in the welding chamber ? LED lighting ? Long-life lamp ? Integrated video camera ? Wi-Fi connection ? Data logger web interface ? RJ45 Ethernet port included ? 36-month warranty ? Optional: 0.1 spot size
