Woodpecker
SKU
EN28-MOTOPEX

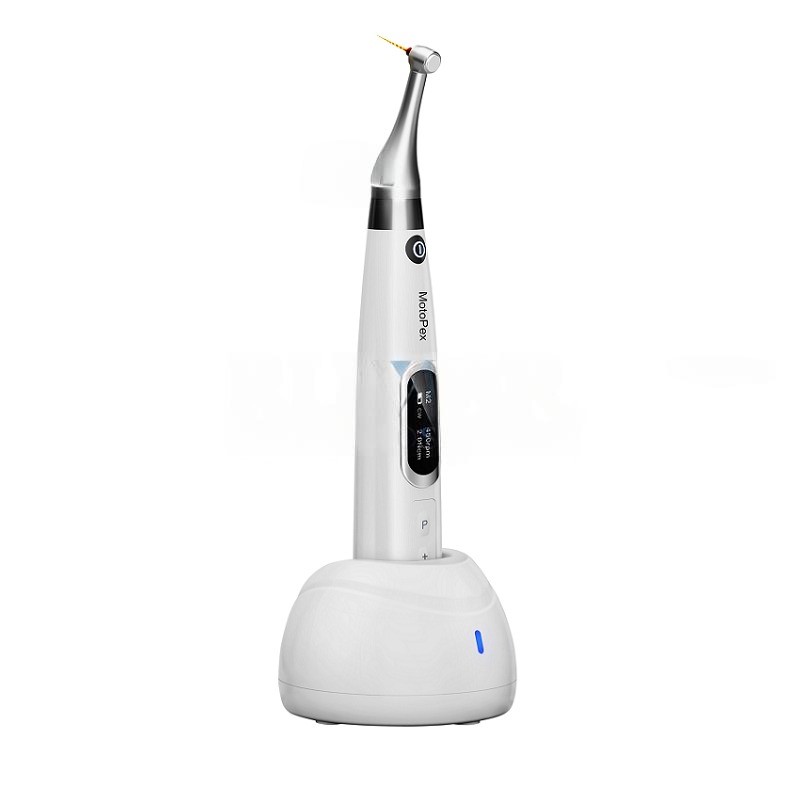

MOTOPEX | Endodontic motor WOODPECKER
£1023.99
£853.33excl. VAT
Delivery3–5 days
Order before18:00:00
Returns14 days
Key specifications
brand_woodpecker
Woodpecker
head-height
9.7
angle
10 degrees
battery-capacity
2000
Add to cart
MOTOPEX | WOODPECKER endodontic motor
Compact and light and ideal for specialized endodontists! Motor + wireless contra-angle with integrated apex locator. Brushless motor with greater performance, precision and durability. It also has an automatic reverse function to effectively prevent file fractures. The latest technology to have all information in real time and dynamic torque control.
*5 available modes:
- Apex locator mode (EAL): measurement only. You have a detail of 9 steps to the apex and apart from the apex, you can set a reference point manually (flash bar).
- Normal mode (CW): clockwise rotation. You can set: speed (rpm), torque (Ncm)*, what to do upon reaching the apical point (STOP / REVERSE / OFF), whether to start rotating when the file enters the canal (ON / OFF), set a reference point (flash bar) and whether to reduce speed when approaching the apical point or not (ON / OFF).*Upon reaching the pre-set torque = CCW + acoustic signal and after releasing torque = CW.
- Reverse mode (CCW): counterclockwise rotation. Ideal for injecting calcium hydroxide and similar. You can set: speed (rpm), set a reference point (flash bar) and whether to reduce speed when approaching the apical point or not (ON / OFF).
- Reciprocal mode (REC): You can set: speed (rpm), torque (Ncm), advance angle and reverse angle**, what to do upon reaching the apical point (STOP / REVERSE / OFF), whether to start rotating when the file enters the canal (ON / OFF) and set a reference point (flash bar).
- Adaptive Torque Inversion mode (ATR): the file rotates clockwise until it reaches the pre-set torque limit. After reaching it, it starts rotating alternately according to the set angles. You can set: speed (rpm), torque (Ncm), advance angle and reverse angle**, what to do upon reaching the apical point (STOP / REVERSE / OFF), whether to start rotating when the file enters the canal (ON / OFF) and set a reference point (flash bar).
**F: advance angle / R: reverse angle. Both adjustable every 10 degrees in an adjustment range of 20º-400º.
Features:
- Compatible with all files from leading brands.
- 10 memorizable programs.
- 30 systems of pre-defined files and programmed according to file manufacturer's specifications. (See below) In cases where they exist: each with different programming groups according to file length and taper.
- Adjustable working angle for easy access to different dental pieces.
- 360º head rotation.
- Clear, intuitive and the largest OLED screen on a handpiece.
- Easy to operate.
- Light handpiece 158 g.
- High capacity battery: 2,000 mAh.
- Super mini head (Ref.: 28-ME004): 8 mm diameter and 9.7 mm height -> greater visibility.
- 6:1 reduction -> greater precision and cutting capacity.
- Planetary gearbox -> greater durability.
- Autoclavable.
- Automatic calibration function.
- Adjustable torque: 0.4 Ncm to 5.0 Ncm.
- Adjustable speed: 100 to 1,800 rpm.
Warranty:
- Unit and handpiece warranty: 24 months
- Contra-angle warranty: 12 months
Supply includes:
- Handpiece
- Charging base
- 2x Touch Probes (test tips)
- 2x Lip hooks
- Measuring cable
- 4x Clips
- Transformer charger
- 2x Protective silicone sleeves
- Lubrication nozzle
- Disposable sleeves
- Other spare parts
LIST OF PRE-DEFINED FILE SYSTEMS:
1.- W3-Pro
2.- W2-ONE
3.- W3-Single
4.- W2-Plus
5.- W2-One
6.- W2-Pro
7.- ENDO-Plus
8.- W2
9.- Wave-One
10.- Wave One Gold
11.- ProTaper
12.- ProTaper Next
13.- PathFile
14.- RECIPROC
15.- RECIPROC Blue
16.- Mtwo
17.- FlexMaster
18.- K3
19.- K3XF
20.- TF
21.- Revo-S
22.- One Shape
23.- One Shape Apical
24.- G-Files
25.- Endo Flar
26.- iRace
27.- BioRace
28.- Gate
29.- XP-endo Finisher
30.- XP-endo Shape
| brand_woodpecker | Woodpecker |
| head-height | 9.7 |
| angle | 10 degrees |
| battery-capacity | 2000 |
| adjustable-torque | 0.4 to 5.0 |
| memorizable-programs | 10 |
| head-rotation | 360º |
| contra-angle-warranty | 12 months |
| torque | Ncm |
| handpiece-weight | 158 |
| adjustable-speed | 100 to 1,800 |
| compatibility | all files from leading brands |
| short-description | MOTOPEX endodontic motor + Contra angle + compact integrated apex locator. Do you have doubts about its operation? Click HERE |
| speed | rpm |
| head-diameter | 8 |
| warranty | 24 months |
| angle-adjustment-range | 20º-400º |
| gearbox | planetary |
| adjustable-angle | adjustable work |
| attributes-summary | Brand: Woodpecker |
| working-modes | Apex locator mode (EAL), Normal mode (CW), Reverse mode (CCW), Reciprocal mode (REC), Adaptive Torque Reverse mode (ATR) |
| sterilizable | in autoclave |
| predefined-file-systems | 30 |
| material | brushless |
| calibration | automatic |
| length | 9.7 |
| reduction | 6:1 |
