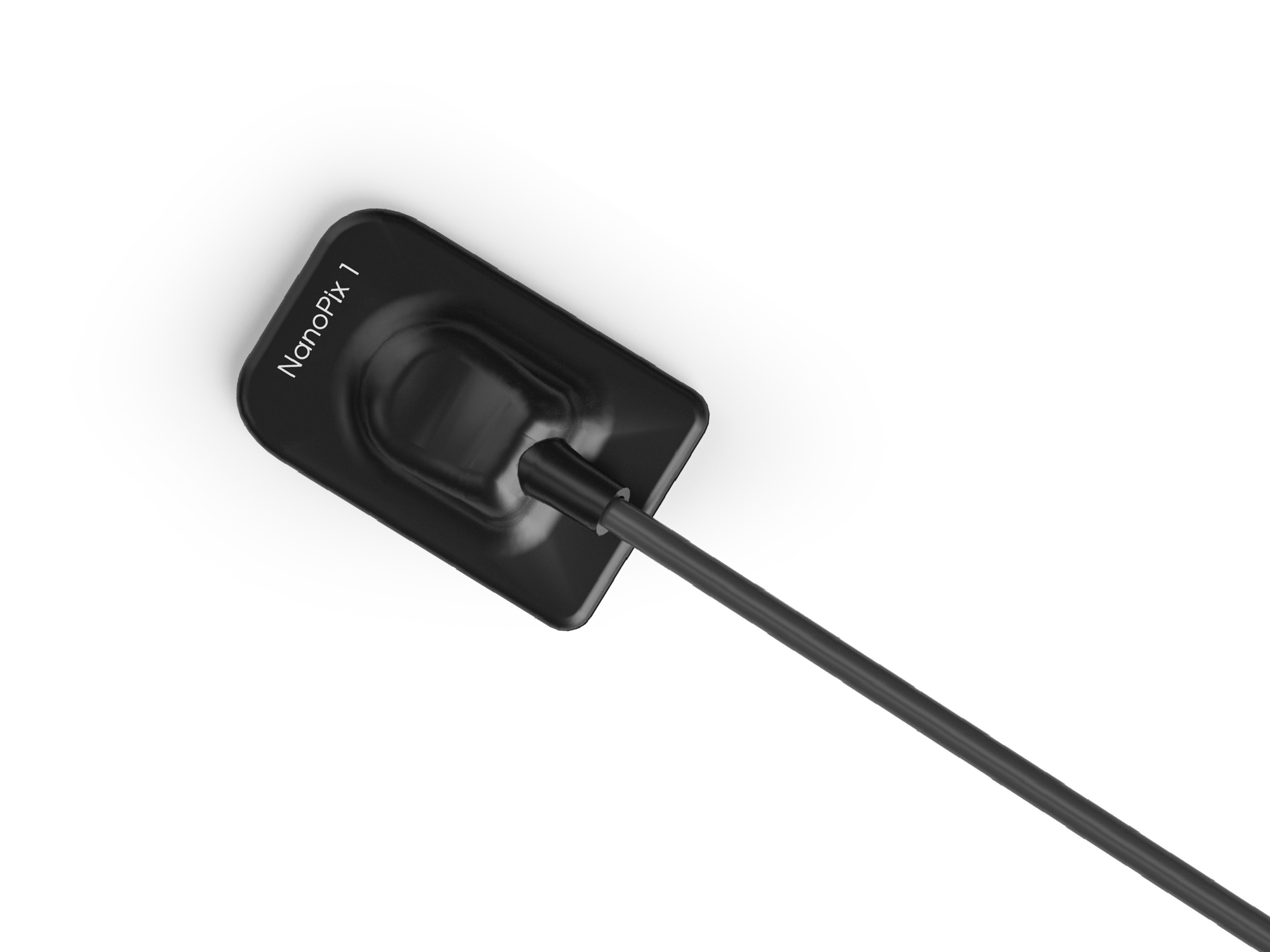

NANOPIX 1 SENSOR DETECTOR

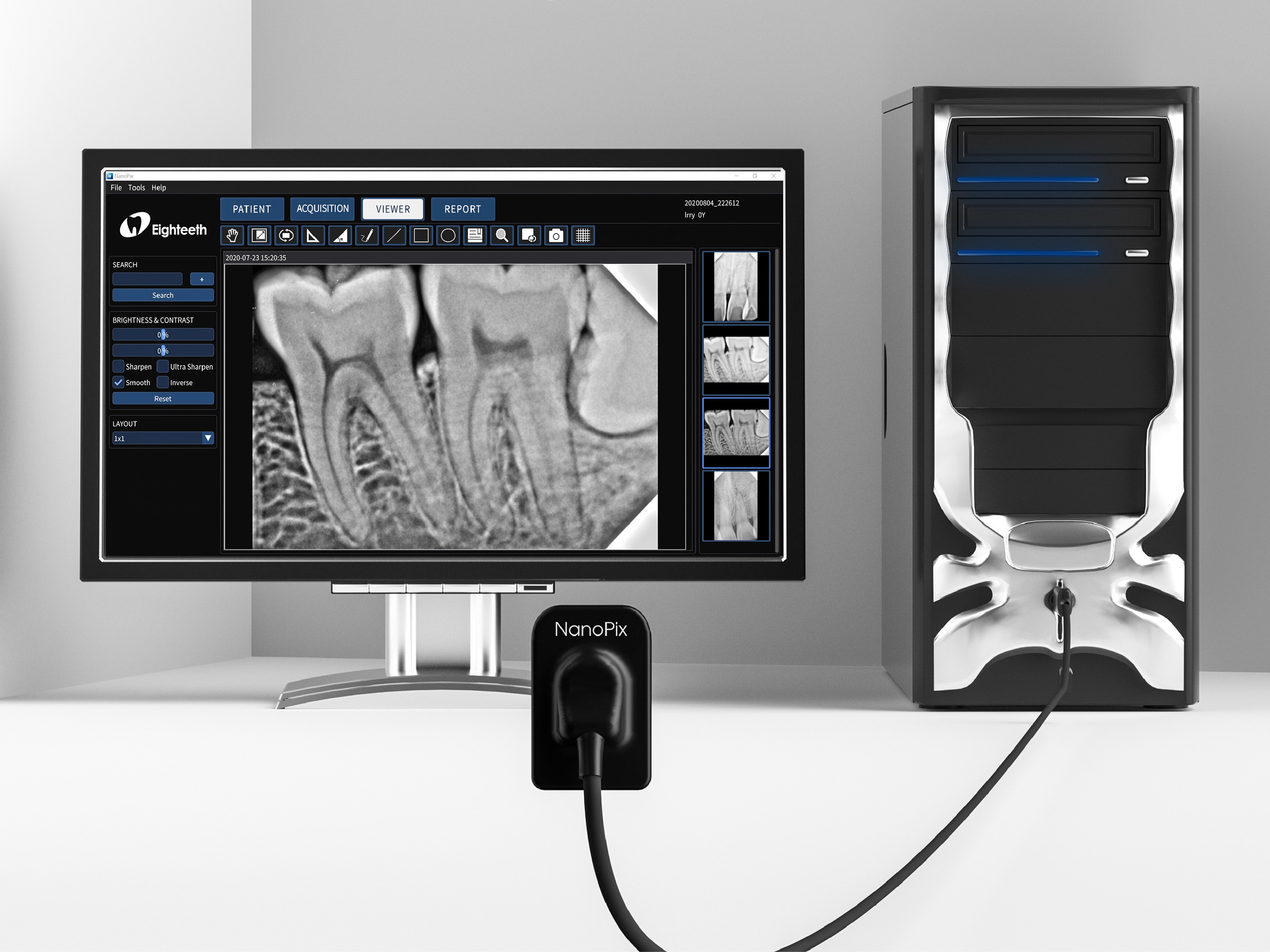

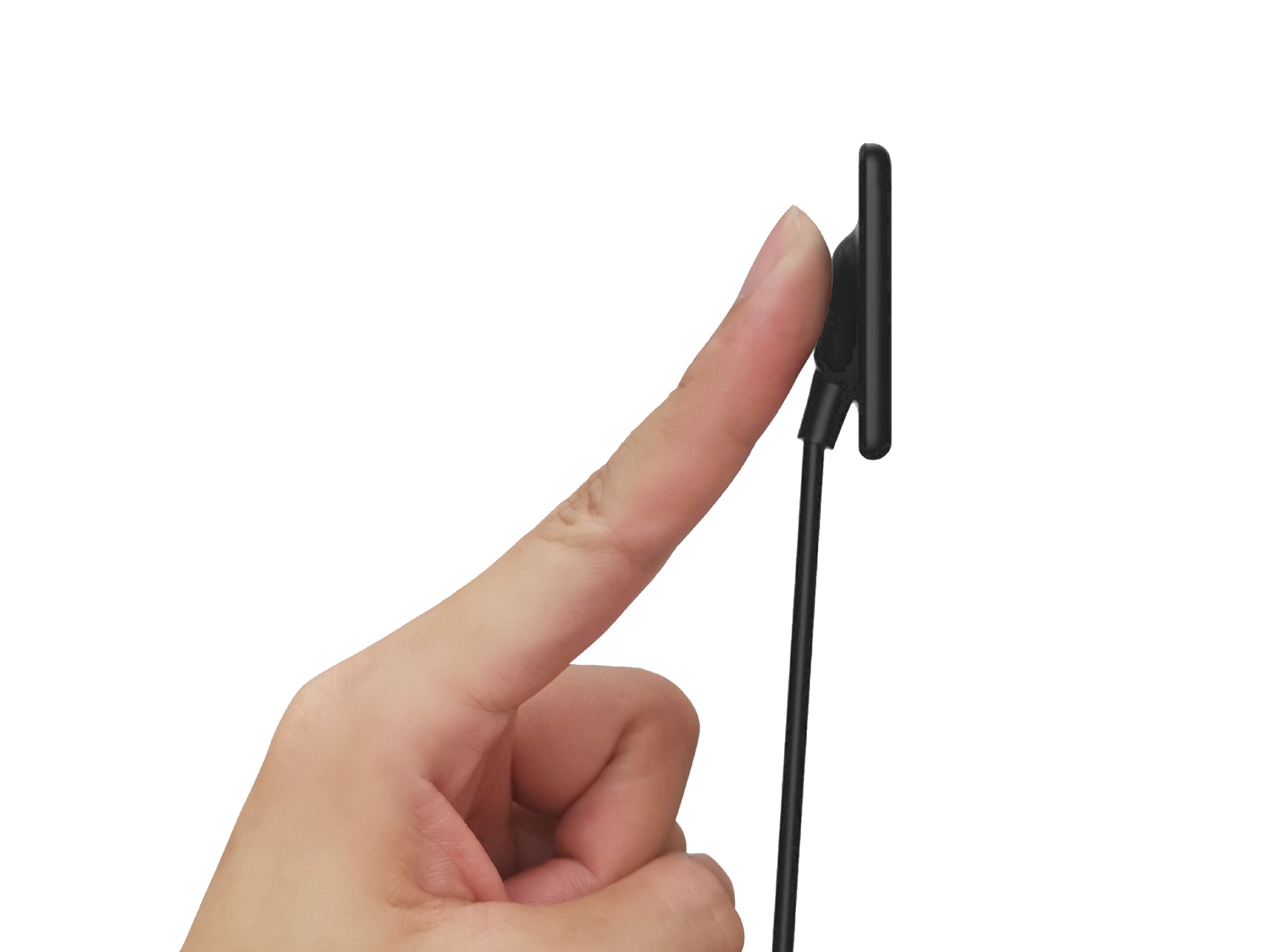

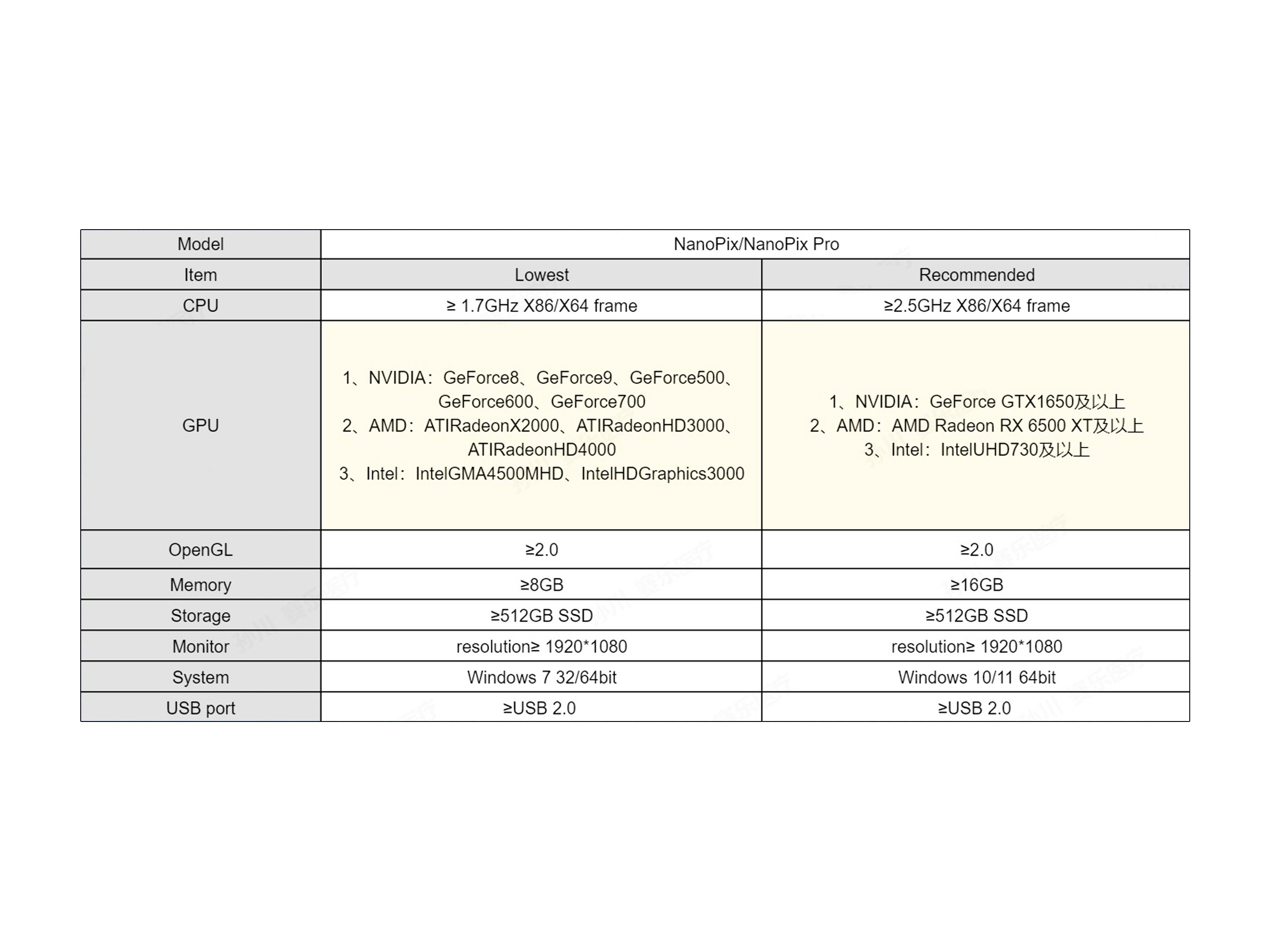

Main features High-resolution X-ray radiovisiography (25 lp/mm) Latest generation CMOS technology for clear and detailed images Reduced thickness of 4.4 mm, facilitating placement and improving patient tolerance Fast image capture process: only 3 seconds Reduction of radiation dose compared to conventional radiographic films Sensor active area size 1: 20 x 30 mm External dimensions: 25.4 mm x 36.8 mm Compatible with most dental X-ray generators Reinforced 3-meter cable for greater durability and freedom of movement Design with rounded edges and soft corners, minimizing discomfort during exploration USB connection for immediate image transmission Includes pre-installed, intuitive image acquisition and management software, easy to integrate into the practice Technical specifications Technology: CMOS APS Theoretical resolution: 25 lp/mm Sensor thickness: 4.4 mm Cable length: 3 meters Active area: 20 x 30 mm External dimensions: 25.4 x 36.8 mm Power: via USB connection Acquisition time: ~3 seconds Compatible with Windows and most dental imaging software
