Scaler Electronic Ultrasound Bader

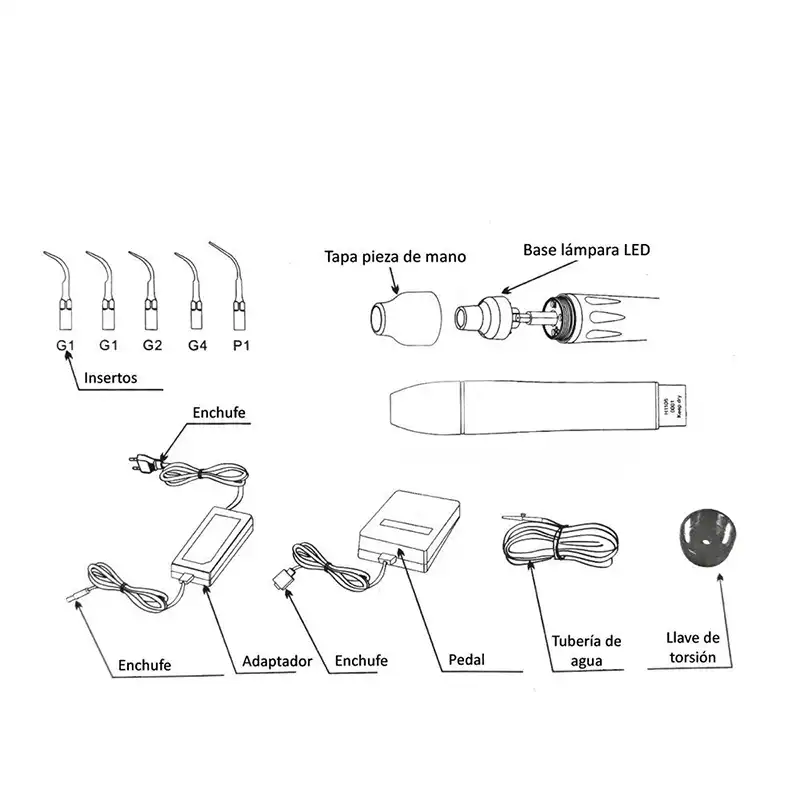

Ultrasonic Scaler Electronic Bader. The ultrasonic scaler is composed of an electro-circuit, a water line and an ultrasonic transducer. It is a powered device that through the ultrasonic vibration of an insert removes calculus and other accumulations (such as bacterial plaque) from the dental surface during cleaning or periodontal treatment. Contraindications: Its use is not recommended in patients with hemophilia. Its use is prohibited in patients and doctors with pacemakers. It should be used with caution in patients with heart problems, pregnant women and children. Technical characteristics: Adapter input: from 100V to 240V AC 50/60 Hz 1A. Main unit input: 30VDC 1A. Main unit fuse: 250V/T 1AL. Output power: from 3W to 20W. Insert vibration power: ≤100 μm. Insert vibration frequency: 28kHz ± 3kHz. Output force: <2N. Water pressure: from 0.01MPa to 0.5MPa (0.1bar to 5bar). Main unit weight: 0.61 kg. Adapter weight: 0.23 kg. Operation mode: continuous operation. Classification 93/42/EEC: Class II A. Type of protection against electric shock: Class II. Degree of protection against electric shock: B. Degree of protection against harmful water ingress: Equipment not suitable for use in the presence of flammable anesthetic mixture with air or with oxygen or nitrous oxide. Environmental working conditions: Ambient temperature: from +10ºC to +40ºC. Ambient humidity: from 0 to 80%. Atmospheric pressure: from 700hPa to 1060hPa.
